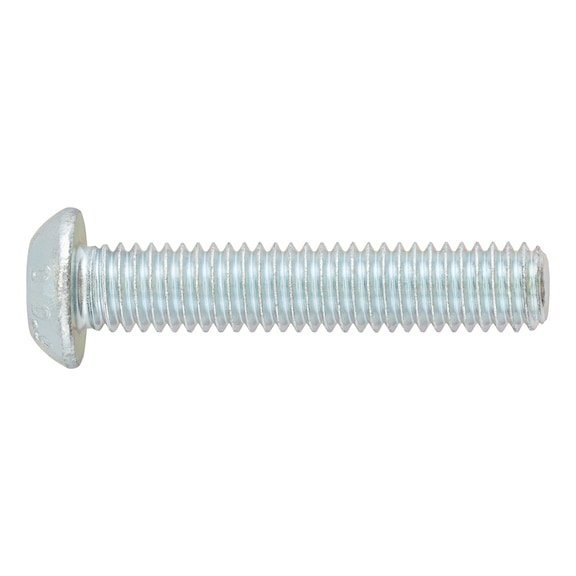

ISO 7380-1 Button Head Hex Socket Screw | M3 | Zinc Plated Blue Passivated | High Strength Steel | @Pack of 25 | by Wurth
ISO 7380-1 Button Head Hex Socket Screw in M3 size offers high strength with a zinc plated blue passivation for enhanced corrosion resistance. Perfect for mechanical assemblies and precision equipment, this screw features a hexagon socket drive for secure tightening, making it ideal for industrial applications where reliability is crucial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ISO 7380-1 Button Head Hex Socket Screw | M3 | Zinc Plated Blue Passivated | High Strength Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 6001316
Alternatively Known As: Button Head Hex Socket Screw, ISO 7380-1 Screw, Zinc Plated Hex Socket Screw, M3 Button Head Screw
Technical Specifications
- Thread type x nominal diameter: M3
- Length: 16 mm
- Head diameter: 5.7 mm
- Head height: 1.65 mm
- Standards: ISO 7380-1
- Material: Steel
- Property class: 010.9
- Surface: Zinc plated with blue passivation
- Head type: Button head (flattened half round)
- Drive type: Hexagon socket (HS2)
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.65mm x 16mm x 5.7mm
- Weight: 0.005 kg
Key Features
- Steel material with property class 010.9 for high strength
- Zinc plated with blue passivation for corrosion resistance
- Hexagon socket drive for secure tightening
- Button head design with flattened half round shape
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure correct torque and load application due to limited load capacity of the head geometry.
Applications
- Mechanical assemblies requiring secure fastening with limited load capacity
- Electronics and precision equipment assembly
- General industrial and manufacturing use where ISO 7380-1 screws are specified
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, mechanical, and precision assembly applications requiring ISO 7380-1 compliant screws.
