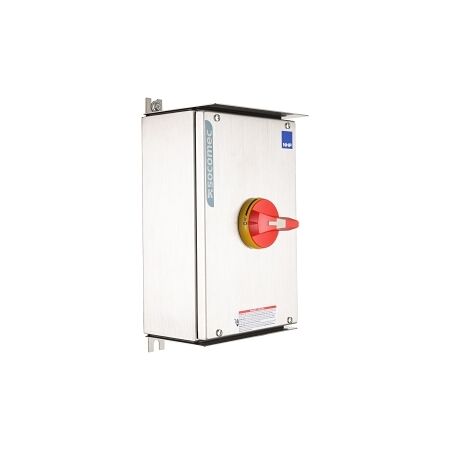

ISO Enclosed Isolator 3P 100A IP65 Stainless Steel Red Handle NHP
ISO enclosed isolator with IP65 rating and stainless steel construction—ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Permanent Current: 100 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Operation Current at AC 23A 400V: 70 A
- Rated Operation Current at AC 23A 690V: 100 A
- Rated Short Time Withstand Current: 5 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Operating Voltage: 690 V
- Conditioned Rated Short Circuit Current: 20 kA
- Number of Auxiliary Contacts (Normally Closed): 0
- Number of Auxiliary Contacts (Normally Open): 0
- Colour Control Element: Red
- Degree of Protection: IP65
- NEMA Rating: 4X
- Connectable Conductor Cross Section: 10-70 mm²
- Dimensions (H x L x W): 309mm x 120mm x 200mm
- Weight: 0.77 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Stainless steel construction for durability and corrosion resistance.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for isolating electrical circuits in various industrial applications.
- Commercial: Ideal for commercial buildings requiring reliable isolation solutions.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase, ideal for industrial and commercial applications.
