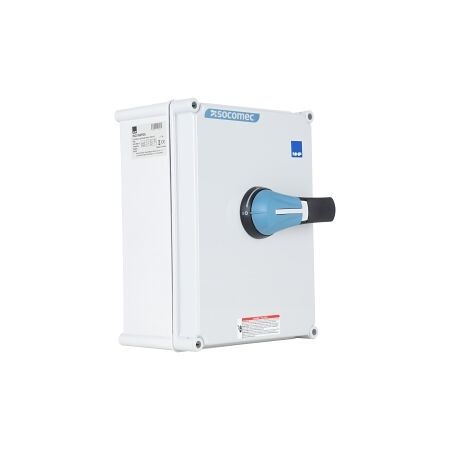

ISO Enclosed Isolator 3P 160A | IP65 Plastic Grey | Blue Handle by NHP
ISO enclosed isolator with 3 poles and 160A current rating—ideal for industrial and commercial applications. Built for safety with IP65 protection and padlock locking feature.
Sign in
Please login to continue to your account.
Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 3P 160A
Brand: NHP
SKU: ISO3160PGS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
- Rated Permanent Current: 160 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Short Time Withstand Current: 15 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Operating Voltage: 690 V
- Degree of Protection: IP65
- NEMA Rating: 4X
- Connectable Conductor Cross Section: 50-95 mm²
- Dimensions (H x L x W): 360mm x 176mm x 270mm
- Weight: 1.5 kg
- IP65 rated for protection against dust and water ingress.
- Padlock locking feature for enhanced safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Suitable for use in manufacturing and processing facilities
- Commercial: Ideal for commercial buildings requiring reliable isolation solutions
- Complies with AS/NZS 3000 for electrical installation standards.
- Durable plastic housing reduces environmental impact compared to metal alternatives.
1 year warranty against manufacturing defects.
The Socomec ISO Enclosed Isolator is available now for immediate purchase, ideal for industrial and commercial applications.
