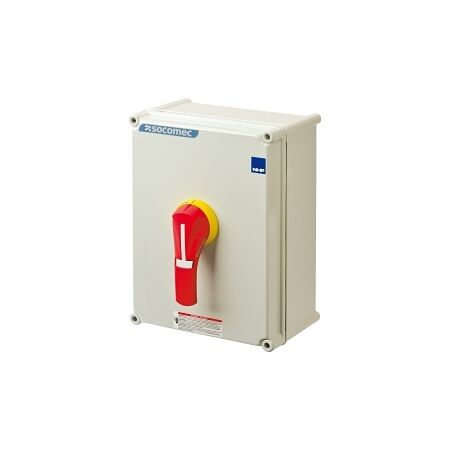

ISO Enclosed Isolator 4P 160A | IP65 Plastic | Red Handle by NHP
ISO enclosed isolator with 4 poles and 160A rating—ideal for industrial and commercial electrical isolation. Built for safety with IP65 protection, red handle for easy operation, and padlock locking feature.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Red, 4P 160A
Brand: NHP
SKU: ISO4160PYS
Alternatively Known As: ISO Switch, Isolator Switch, Switch Disconnector
Technical Specifications
- Rated Permanent Current: 160 A
- Number of Poles: 4
- Frequency: 50/60 Hz
- Rated Operation Current (DC): 125 A at 500 V
- Rated Short Time Withstand Current: 15 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Type of Electrical Connection: Screw connection
- Degree of Protection: IP65, NEMA 4X
- Padlock Locking: Yes
- Connectable Conductor Cross Section: 50-95 mm²
- Dimensions (H x L x W): 360mm x 176mm x 270mm
- Weight: 1.5 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Red handle for easy identification and operation.
- Screw connection for secure electrical connections.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Any application requiring safe electrical isolation
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable plastic construction reduces environmental impact compared to metal alternatives.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase, ideal for industrial and commercial applications.
