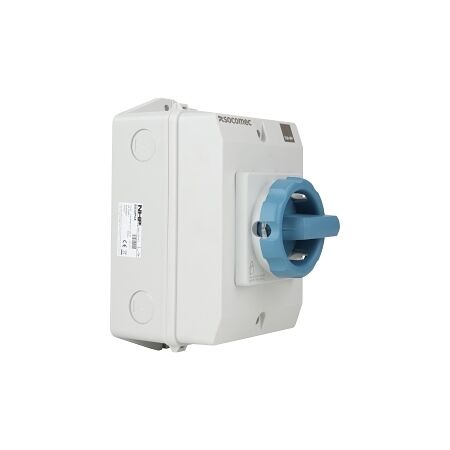

ISO Enclosed Isolator 4P 32A | IP65 Plastic Grey | Blue Handle by NHP
ISO enclosed isolator with 4 poles and 32A rating—ideal for industrial and commercial electrical systems. Built for safety with IP65 protection and padlock locking feature.
Sign in
Please login to continue to your account.
Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 4P 32A
Brand: NHP
SKU: ISO432PGS
Alternatively Known As: ISO Switch, Isolator Switch, Switch Disconnector
- Rated Permanent Current: 32 A
- Number of Poles: 4
- Frequency: 50/60 Hz
- Rated Operation Current: 13 A at AC 23A 690 V
- Rated Short Time Withstand Current: 1.28 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Electrical Connection Type: Screw connection
- Rated Operating Voltage: 690 V
- Auxiliary Contacts: 0 Normally Closed, 0 Normally Open, 0 Change Over
- Motor Drive Integrated: No
- Degree of Protection: IP65
- NEMA Rating: 4X
- Interlockable: No
- Number of Switches: 1
- Dimensions (H x L x W): 140mm x 81mm x 100mm
- Weight: 0.42 kg
- IP65 rated for protection against dust and water ingress.
- 4 poles for versatile electrical connections.
- Padlock locking feature for enhanced safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Any application requiring a reliable isolator switch
- Complies with AS/NZS 3000 for electrical installation safety.
- Durable plastic housing reduces environmental impact compared to metal alternatives.
1 year warranty against manufacturing defects.
The Socomec ISO Enclosed Isolator is available now for immediate purchase, ideal for industrial and commercial electrical applications.
