ISO Enclosed Isolator 4P 40A | IP65 Plastic Grey | Padlock Locking by NHP
ISO enclosed isolator with 4 poles and 40A rating—ideal for industrial and commercial electrical systems. Built for safety with IP65 protection and padlock locking feature.
Sign in
Please login to continue to your account.

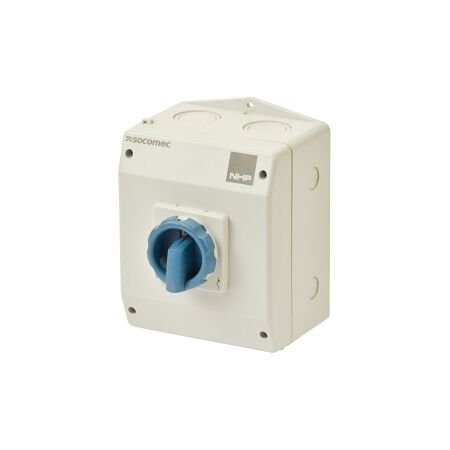

Product Name/Title: Socomec ISO Enclosed Isolator, Large IP 65 Plastic Grey, Handle - Blue, 4P 40A
Brand: NHP
SKU: ISO440PGLES
Alternatively Known As: ISO Switch, Isolator Switch, Electrical Isolator
- Rated Permanent Current: 40 A
- Number of Poles: 4
- Frequency: 50/60 Hz
- Rated Operation Current: 18 A at AC 23A 690V
- Rated Short Time Withstand Current: 1.28 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Electrical Connection Type: Screw connection
- Rated Operating Voltage: 690 V
- Number of Auxiliary Contacts: 0
- Motor Drive Integrated: No
- Degree of Protection: IP65
- NEMA Rating: 4X
- Interlockable: No
- Padlock Locking: Yes
- Connectable Conductor Cross Section: 2.5-10 mm²
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.42 kg
- IP65 rated for protection against dust and water ingress.
- 4 poles for versatile electrical connections.
- Padlock locking feature for enhanced safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Any application requiring a reliable isolator switch
- Complies with relevant Australian standards for electrical safety.
- Durable plastic housing reduces environmental impact.
1 year warranty against manufacturing defects.
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical isolation.
