ISO Surface Switch 2 Pole 20A | Lock in OFF | IP66 Rated | Resistant Orange by NHP
ISO surface switch with common key and lock in OFF position, rated for 2 pole 20A 250V AC—ideal for industrial and commercial power control. Built for safety and durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

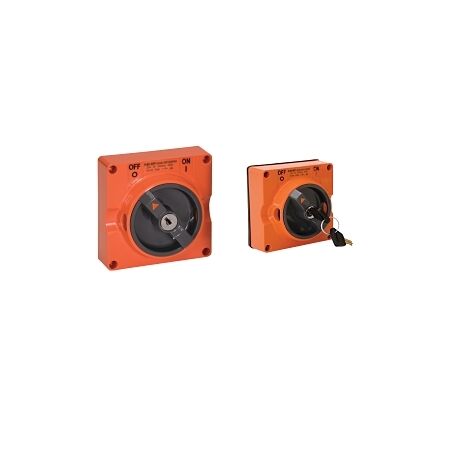

Product Name/Title: NHP ISO Surface Switch - Common Key, Lock in OFF,2 Pole 20A 250V AC, w/o Base, Resistant Orange
Brand: NHP
SKU: ISOKC1SW120PROLB
Alternatively Known As: ISO Surface Switch, Lockable Surface Switch, Industrial Surface Switch
Technical Specifications
- Rated Operating Voltage: 250 V
- Rated Permanent Current: 20 A
- Number of Poles: 2
- Frequency: 50 Hz
- Material Housing: Plastic
- Degree of Protection: IP66, NEMA 4X
- Padlock Locking: Yes
- Connectable Conductor Cross Section: 1.5-6 mm²
- Dimensions (H x L x W): 101mm x 54mm x 101mm
- Weight: 0.5 kg
Key Features
- Common key operation with lock in OFF position for safety.
- IP66 rated for protection against dust and water ingress.
- Suitable for 2 pole applications with a rated current of 20A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, warehouses, and outdoor installations
- Commercial: Retail and service areas requiring secure power control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Surface Switch - Common Key, Lock in OFF, 2 Pole 20A 250V AC is available now for immediate purchase. Ideal for industrial and commercial applications requiring secure power control.
Non-Returnable & Non-Cancellable
