Trade Discount 20%

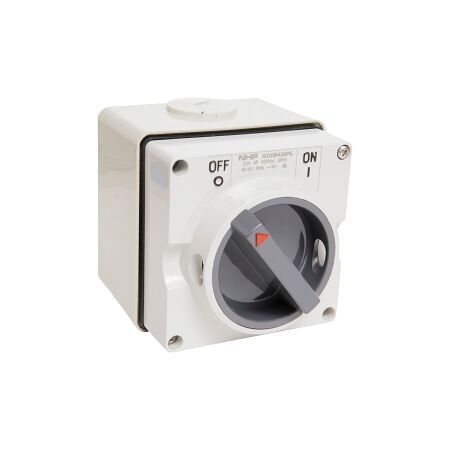

ISO Surface Switch 4 Pole 20A 500V AC IP66 Rated Grey NHP
ISO surface switch with 4 pole configuration rated at 20A 500V AC for industrial and commercial electrical applications. Features IP66 and NEMA 4X protection, padlock locking capability and durable plastic housing for reliable performance. Dimensions (H x L x W): 101mm x 117mm x 101mm and complies with AS/NZS 3000 for electrical installations. Scroll down to view the complete technical specifications and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Operating Voltage: 500 V
- Rated Permanent Current: 20 A
- Number of Poles: 4
- Frequency: 50 Hz
- Degree of Protection: IP66, NEMA 4X
- Material Housing: Plastic
- Connectable Conductor Cross Section: 2.5-6 mm²
- Dimensions (H x L x W): 101mm x 117mm x 101mm
- Weight: 1.5 kg
Key Features
- 4 pole design for versatile applications.
- Rated for 20A at 500V AC.
- IP66 rated for protection against dust and water.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for heavy-duty applications requiring reliable switching.
- Commercial: Ideal for use in commercial buildings and facilities.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Surface Switch, 4 Pole 20A 500V AC, Grey is available now for immediate purchase. Ideal for industrial and commercial applications.
FAQ
Q: What applications is this 4 pole ISO surface switch designed for?
A: It is suitable for heavy-duty industrial and commercial installations requiring reliable 20A 500V AC switching and electrical isolation.
Q: What protection features does this surface switch include?
A: It provides IP66 ingress protection, NEMA 4X environmental protection, and a padlock locking feature for enhanced operational safety.
Pair this installation with an ISO Surface Switch 3 Pole 32A 500V for applications requiring an alternative pole configuration.
Install a Weatherproof Junction Box to help protect cable connections in outdoor and industrial installations.
Complete the installation with a Weatherproof Enclosure for compatible surface-mounted electrical equipment.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
