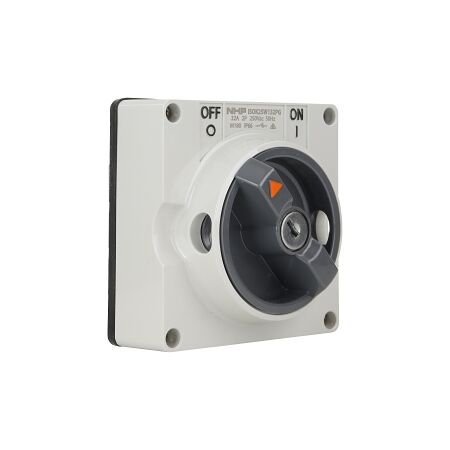

ISO Surface Switch Key Lock 2 Pole 32A 250V IP66 Grey NHP
ISO surface switch with key lock and 2 pole configuration rated at 32A 250V for industrial, commercial and general electrical applications. Features IP66 and NEMA 4X protection, secure key lock mechanism, and durable plastic housing for reliable operation. Dimensions (H x L x W): 101mm x 54mm x 101mm and complies with AS/NZS 3000 for electrical installations. Scroll down to view the complete technical specifications and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Operating Voltage: 250 V
- Rated Permanent Current: 32 A
- Number of Poles: 2
- Frequency: 50 Hz
- Material Housing: Plastic
- Degree of Protection: IP66
- NEMA Rating: 4X
- Padlock Locking: Yes
- Connectable Conductor Cross Section: 1.5-6 mm²
- Dimensions (H x L x W): 101mm x 54mm x 101mm
- Weight: 0.5 kg
Key Features
- Key lock mechanism for secure ON/OFF operation.
- IP66 rated for protection against dust and water ingress.
- Suitable for 2 pole applications with a current rating of 32A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, warehouses, and manufacturing facilities
- Commercial: Retail and office environments
- General: Any location requiring a secure surface switch
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Surface Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring secure switching.
FAQ
Q: What applications is this key lock ISO surface switch suitable for?
A: It is suitable for factories, warehouses, manufacturing facilities, retail environments, offices, and other locations requiring secure surface-mounted electrical switching.
Q: What safety features does this switch provide?
A: It features a key lock mechanism for secure ON/OFF operation, IP66 ingress protection, NEMA 4X environmental protection, and a durable enclosure for demanding applications.
Pair this installation with an ISO Surface Switch 2 Pole 10A IP66 for applications requiring a lower current-rated isolation switch.
Install a Weatherproof Junction Box to help protect cable connections in outdoor and industrial installations.
Complete the installation with a Weatherproof Enclosure for compatible surface-mounted electrical equipment.
