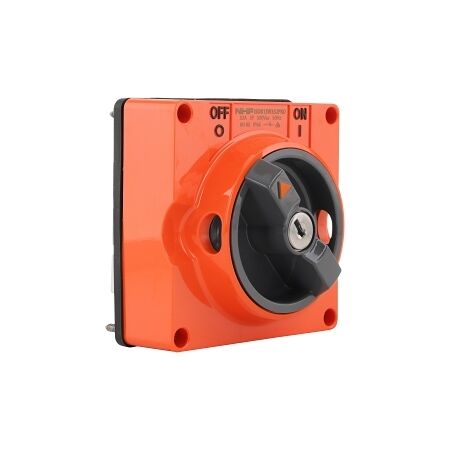

ISO Surface Switch Key Lock 3 Pole 32A 500V IP66 Resistant Orange NHP
ISO surface switch with key lock and 3 pole configuration rated at 32A 500V for industrial, commercial and heavy-duty electrical applications. Features IP66 and NEMA 4X protection, secure key lock mechanism, and durable plastic housing for reliable performance. Dimensions (H x L x W): 101mm x 54mm x 101mm and complies with relevant Australian electrical installation standards. Scroll down to view the complete technical specifications and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Operating Voltage: 500 V
- Rated Permanent Current: 32 A
- Number of Poles: 3
- Frequency: 50 Hz
- Material Housing: Plastic
- Degree of Protection: IP66
- NEMA Rating: 4X
- Connectable Conductor Cross Section: 10-16 mm²
- Dimensions (H x L x W): 101mm x 54mm x 101mm
- Weight: 1.0 kg
Key Features
- Key locking mechanism for added safety.
- IP66 rated for protection against dust and water.
- Suitable for 3 pole applications with a current rating of 32A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Warehouses, distribution centers
- General: Any location requiring a secure surface switch
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Surface Switch - Key, Lock in OFF, 3 Pole 32A 500V AC is available now for immediate purchase. Ideal for industrial and commercial applications.
FAQ
Q: What applications is this key lock ISO surface switch suitable for?
A: It is suitable for factories, manufacturing plants, warehouses, distribution centres, and other industrial environments requiring secure surface-mounted electrical isolation.
Q: What safety features does this switch provide?
A: It features a key lock mechanism for secure operation, IP66 ingress protection, NEMA 4X environmental protection, and a durable enclosure for demanding industrial applications.
Pair this installation with an ISO Surface Switch 3 Pole 32A 500V Lock in OFF where padlock lockout isolation is required.
Install a Weatherproof Junction Box to help protect cable connections in outdoor and industrial installations.
Complete the installation with a Weatherproof Enclosure for compatible surface-mounted electrical equipment.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
