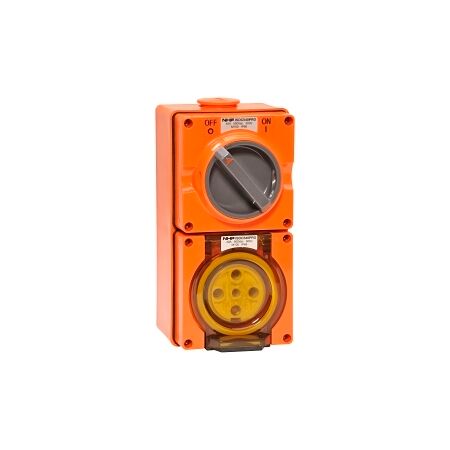

ISO Switched Socket Outlet 5 Round Pins | 40A 500V AC | IP66 Hinged Lid by NHP
ISO switched socket outlet with 5 round pins, rated for 40A and 500V AC—ideal for industrial and commercial use. Built for heavy-duty applications, with IP66 protection and a hinged lid for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP ISO Switched Socket Outlet, 5 Round Pins 40A 500V AC, with Base, RO
Brand: NHP
SKU: ISOC540PRO
Alternatively Known As: ISO Switched Socket, 40A Socket Outlet, Heavy Duty Socket
Technical Specifications
- Nominal Voltage: 500 V
- Rated Current: 40 A
- Number of Phases: 3
- Number of Switching Poles: 3
- With Neutral Conductor Contact: Yes
- With Switch: Yes
- M Rating: M100
- Material: Plastic
- Type of Cover: Hinged lid
- Number of Active Pins (Round): 5
- With Base: Yes
- Resistant to Chemicals: Yes
- Degree of Protection: IP66
- Conductor Cross Section (Solid/Solid Stranded): 10-16 mm²
- Dimensions (H x L x W): 198mm x 63mm x 101mm
- Weight: 1.5 kg
Key Features
- Rated for 40A and 500V AC, suitable for heavy-duty applications.
- IP66 rated for protection against dust and water ingress.
- Hinged lid cover for added safety and protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, workshops, and heavy machinery
- Commercial: Large retail spaces and commercial buildings
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Switched Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust and reliable power solutions.
