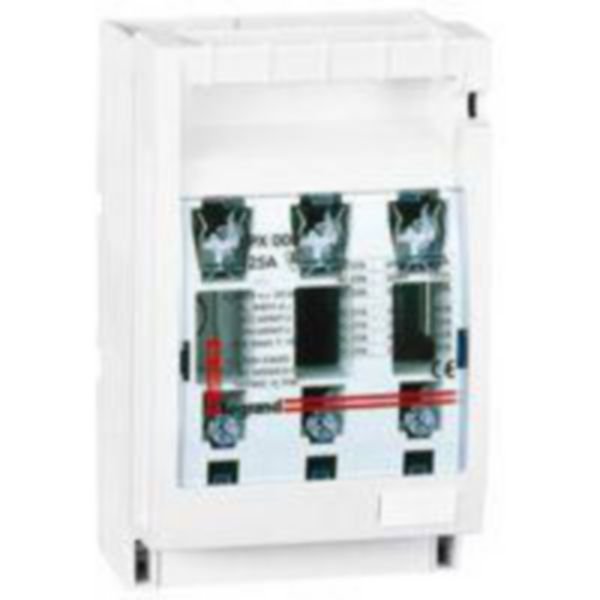

Isolating Switch 3P 125A | 800V Rated Operation | IP40 Protection | @Each of 1 | by Legrand
The Isolating Switch 3P 125A is designed for reliable electrical isolation in industrial settings, featuring a maximum rated operation voltage of 800V and a robust IP40 protection rating. Ideal for power distribution boards and control switchboards, this switch ensures safe disconnection of electrical circuits, reducing the risk of faults and fire hazards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Isolating Switch 3P 125A | 800V Rated Operation | IP40 Protection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 605201
Alternatively Known As: 3 Pole Isolator Switch 125 Amp, 3P 125A Isolating Switch, Legrand 3P Isolator, Industrial Isolating Switch 125A
Technical Specifications
- Version as main switch: Yes
- Version as safety switch: Yes
- Max rated operation voltage Ue AC: 800 V
- Rated permanent current Iu: 125 A
- Rated operation power at AC-23, 400 V: 86.5 kW
- Conditioned rated short-circuit current Iq: 50 kA
- Suitable for fuses: NH000
- Number of poles: 3
- With error protection: No
- Type of electrical connection of main circuit: Frame clamp
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for busbar mounting: Yes
- Type of control element: Cover grip
- Position control element: Front side
- Motor drive optional: No
- Motor drive integrated: No
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP40
- Dimensions (H x L x W): 120mm x 150mm x 60mm
- Weight: 2.5 kg
Key Features
- 3-pole isolating switch with 125A rated current
- Suitable for mounting on 60mm collector rail
- Rated operation voltage up to 800 V AC
- Rated operation power at AC-23, 400 V is 86.5 kW
- Conditioned rated short-circuit current of 50 kA
- Compatible with NH000 fuses
- Frame clamp type electrical connection
- Front and busbar mounting capable
- IP40 degree of protection on front side
- Cover grip control element positioned on front side
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Power distribution boards
- Control and signalling switchboards
- Electrical isolation in commercial and industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection of electrical circuits reducing risk of electrical faults and fire hazards
- Supports efficient maintenance and upgrades, extending equipment lifespan
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand Isolating Switch 3P 125A Mounting Bar 60mm is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
