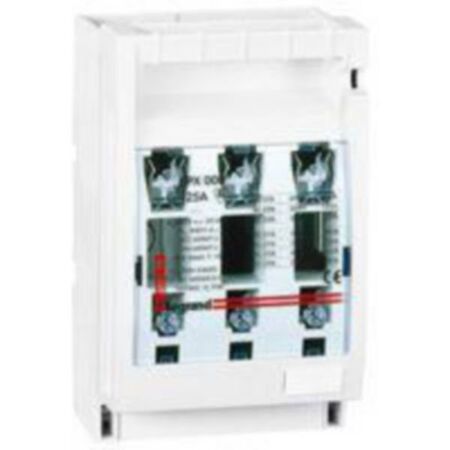

Isolating Switch 3P 125A | Front Mounting | IP40 Protection | @EA of 1 | by Legrand
The Isolating Switch 3P 125A is designed for reliable electrical isolation in industrial and commercial applications. With a maximum rated operation voltage of 800 V AC and a conditioned rated short-circuit current of 50 kA, this switch ensures safety and efficiency. Ideal for licensed electricians, it features front mounting and is compatible with NH000 fuses, making it a versatile choice for power distribution control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Isolating Switch 3P 125A | Front Mounting | IP40 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 605200
Alternatively Known As: 3 Pole Isolator Switch 125A, Legrand 3P Isolating Switch, 3P 125A Fuse Carrier Switch
Technical Specifications
- Version as main switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 800 V
- Rated permanent current Iu: 125 A
- Rated operation power at AC-23, 400 V: 86.5 kW
- Conditioned rated short-circuit current Iq: 50 kA
- Suitable for fuses: NH000
- Number of poles: 3
- With error protection: No
- Type of electrical connection of main circuit: Frame clamp
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for busbar mounting: No
- Type of control element: Cover grip
- Position control element: Front side
- Motor drive optional: No
- Motor drive integrated: No
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP40
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 3.5 kg
Key Features
- 3-pole isolating switch with 125A rated current
- Suitable for front mounting
- Rated operation voltage up to 800 V AC
- Rated operation power at AC-23, 400 V is 86.5 kW
- Conditioned rated short-circuit current of 50 kA
- Frame clamp type electrical connection
- IP40 degree of protection on front side
- Compatible with NH000 fuses
- Version as main and safety switch
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Commercial switchboards
- Power distribution control
- Electrical isolation for maintenance and safety
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection to reduce electrical hazards and energy waste during maintenance
- Durable design reduces need for frequent replacements
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Isolating Switch 3P 125A Mounting Plate is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
