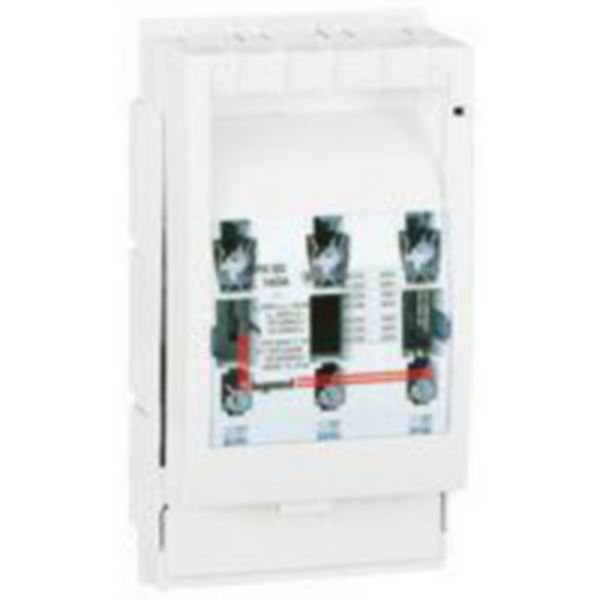

Isolating Switch 3P 160A | 800V AC Max Voltage | IP40 Rated | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 605202
$256.90 List price: $320.20
+ −
30 Days Return Delivery Options
The Isolating Switch 3P 160A is designed for safe electrical isolation in industrial and commercial applications. With a maximum rated operation voltage of 800V AC and a robust IP40 rating, this switch ensures reliable performance and safety during maintenance. Ideal for control panels and switchboards, it features a frame clamp connection and is suitable for front mounting, making it a versatile choice for your electrical distribution needs.

Product Name/Title: Isolating Switch 3P 160A | 800V AC Max Voltage | IP40 Rated | @Each of 1 | by Legrand

Brand: Legrand

SKU: 605202

Alternatively Known As: 3 Pole Isolator Switch 160A, Legrand 3P Isolating Switch, 3P Fuse Carrier Switch 160A

Technical Specifications
  • Version as main switch and safety switch
  • Max rated operation voltage: 800 V AC
  • Rated permanent current: 160 A
  • Rated operation power at AC-23, 400 V: 110.72 kW
  • Conditioned rated short-circuit current: 50 kA
  • Suitable for NH00 fuses
  • Number of poles: 3
  • No error protection
  • Type of electrical connection: Frame clamp
  • Suitable for front mounting only
  • Control element type: Cover grip on front side
  • No motor drive integrated or optional
  • Not suitable for floor or busbar mounting
  • Degree of protection (IP) front side: IP40
  • Dimensions (H x L x W): 250mm x 120mm x 200mm
  • Weight: 3.5 kg
Key Features
  • Version as main switch and safety switch
  • Max rated operation voltage: 800 V AC
  • Rated permanent current: 160 A
  • Rated operation power at AC-23, 400 V: 110.72 kW
  • Conditioned rated short-circuit current: 50 kA
  • Suitable for NH00 fuses
  • 3 poles
  • Frame clamp type electrical connection
  • Front mounting suitable
  • Cover grip control element on front side
  • Degree of protection IP40 on front side
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and correct mounting.
Applications
  • Industrial electrical distribution systems
  • Control panels and switchboards
  • Power isolation for maintenance and safety
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables safe isolation of electrical circuits reducing risk of electrical accidents and damage.
  • Supports maintenance and energy management by allowing controlled power disconnection.
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

The Legrand Isolating Switch 3P 160A Mounting Plate is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
