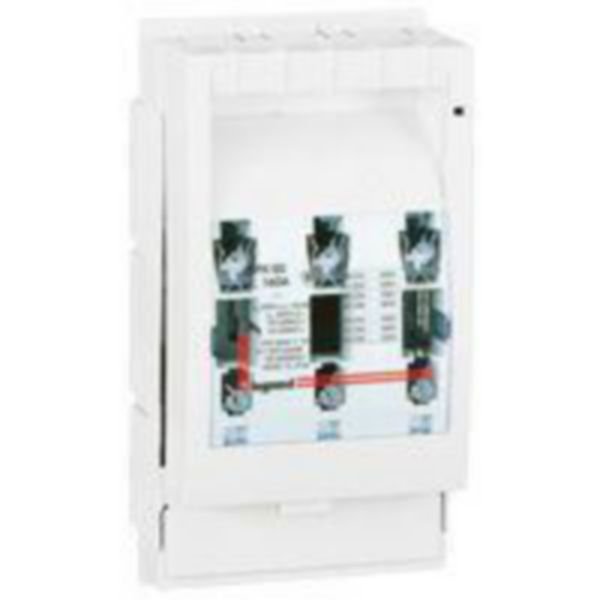

Isolating Switch 3P 160A | 800V Rated Operation | IP40 Protection | @Each of 1 | by Legrand
The Isolating Switch 3P 160A is designed for reliable electrical isolation in industrial applications, featuring a maximum rated operation voltage of 800V and a robust IP40 protection rating. Ideal for switchboards and power cabinets, this switch ensures safe disconnection of circuits, reducing the risk of electrical faults and energy waste. Built for professional installation, it’s compatible with NH00 fuses and offers front and busbar mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Isolating Switch 3P 160A | 800V Rated Operation | IP40 Protection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 605203
Alternatively Known As: 3 Pole Isolator Switch 160A, Legrand 3P Isolating Switch, 3P 160 Amp Isolator, Industrial Isolating Switch 3P
Technical Specifications
- Version as main switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 800 V
- Rated permanent current Iu: 160 A
- Rated operation power at AC-23, 400 V: 110.72 kW
- Conditioned rated short-circuit current Iq: 50 kA
- Suitable for fuses: NH00
- Number of poles: 3
- With error protection: No
- Type of electrical connection of main circuit: Frame clamp
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for busbar mounting: Yes
- Type of control element: Cover grip
- Position control element: Front side
- Motor drive optional: No
- Motor drive integrated: No
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP40
- Dimensions (H x L x W): 120mm x 70mm x 90mm
- Weight: 2.5 kg
Key Features
- 3-pole isolating switch with 160A rated current
- Suitable for mounting on 60mm collector rail
- Rated operation voltage up to 800 V AC
- Rated operation power at AC-23, 400 V is 110.72 kW
- Conditioned rated short-circuit current of 50 kA
- Compatible with NH00 fuses
- Frame clamp type electrical connection
- Front and busbar mounting capable
- IP40 degree of protection on front side
- Cover grip control element positioned on front side
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Switchboards and power cabinets
- Control and signalling systems requiring 3-pole isolation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection of electrical circuits reducing risk of electrical faults and energy waste
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Isolating Switch 3P 160A with 60mm mounting bar is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
