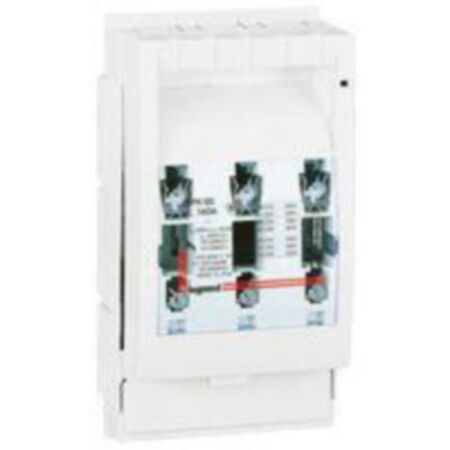

Isolating Switch 3P 160A 800V AC Max Voltage IP40 Rated Legrand

BRAND: Legrand
SKU: 605202
$256.90 List price: $320.20
1 EA ($256.90 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Isolating Switch 3P 160A is designed for safe electrical isolation in industrial and commercial applications.
Technical Specifications
  • Version as main switch and safety switch
  • Max rated operation voltage: 800 V AC
  • Rated permanent current: 160 A
  • Rated operation power at AC-23, 400 V: 110.72 kW
  • Conditioned rated short-circuit current: 50 kA
  • Suitable for NH00 fuses
  • Number of poles: 3
  • No error protection
  • Type of electrical connection: Frame clamp
  • Suitable for front mounting only
  • Control element type: Cover grip on front side
  • No motor drive integrated or optional
  • Not suitable for floor or busbar mounting
  • Degree of protection (IP) front side: IP40
  • Dimensions (H x L x W): 250mm x 120mm x 200mm
  • Weight: 3.5 kg
Key Features
  • Version as main switch and safety switch
  • Max rated operation voltage: 800 V AC
  • Rated permanent current: 160 A
  • Rated operation power at AC-23, 400 V: 110.72 kW
  • Conditioned rated short-circuit current: 50 kA
  • Suitable for NH00 fuses
  • 3 poles
  • Frame clamp type electrical connection
  • Front mounting suitable
  • Cover grip control element on front side
  • Degree of protection IP40 on front side
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and correct mounting.
Applications
  • Industrial electrical distribution systems
  • Control panels and switchboards
  • Power isolation for maintenance and safety
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables safe isolation of electrical circuits reducing risk of electrical accidents and damage.
  • Supports maintenance and energy management by allowing controlled power disconnection.
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

The Legrand Isolating Switch 3P 160A Mounting Plate is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.

LE13594AA (LE13594AA.pdf, 3,518 Kb) [Download]

F02197EN00_SPX_ENG_v5 (F02197EN00_SPX_ENG_v5.pdf, 442 Kb) [Download]
