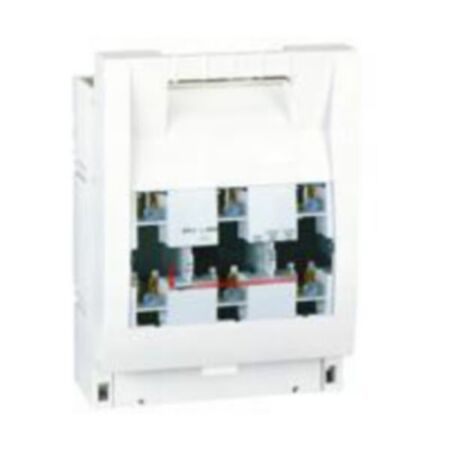

Isolating Switch 3P 250A 800V Rated Operation IP40 Protection Legrand

BRAND: Legrand
SKU: 605205
$1,231.00 List price: $1,534.00
1 EA ($1,231.00 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Isolating Switch 3P 250A is designed for high current isolation in industrial electrical panels, featuring a rated operation voltage of up to 800V and a robust
Technical Specifications
  • Version as main switch: Yes
  • Version as safety switch: Yes
  • Max. rated operation voltage Ue AC: 800 V
  • Rated permanent current Iu: 250 A
  • Rated operation power at AC-23, 400 V: 173 kW
  • Conditioned rated short-circuit current Iq: 50 kA
  • Suitable for fuses: NH1
  • Number of poles: 3
  • With error protection: No
  • Type of electrical connection of main circuit: Frame clamp
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for busbar mounting: Yes
  • Type of control element: Cover grip
  • Position control element: Front side
  • Motor drive optional: No
  • Motor drive integrated: No
  • Version as emergency stop installation: No
  • Degree of protection (IP), front side: IP40
  • Dimensions (H x L x W): 150mm x 100mm x 120mm
  • Weight: 3.5 kg
Key Features
  • 3-pole isolating switch with 250A rated current
  • Suitable for mounting on 60mm collector rail
  • Rated operation voltage up to 800 V AC
  • Rated operation power at AC-23, 400 V is 173 kW
  • Conditioned rated short-circuit current of 50 kA
  • Suitable for NH1 fuses
  • Frame clamp type electrical connection
  • Front and busbar mounting capable
  • IP40 degree of protection on front side
  • Cover grip control element positioned on front side
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
  • Industrial electrical panels
  • Switchboards and power cabinets
  • Control and signalling systems requiring high current isolation
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables safe disconnection of electrical circuits reducing risk of electrical faults and energy waste
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Isolating Switch 3P 250A Mounting Bar 60mm is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.

LE13597AA (LE13597AA.pdf, 4,488 Kb) [Download]

F02197EN00_SPX_ENG_v5 (F02197EN00_SPX_ENG_v5.pdf, 442 Kb) [Download]
