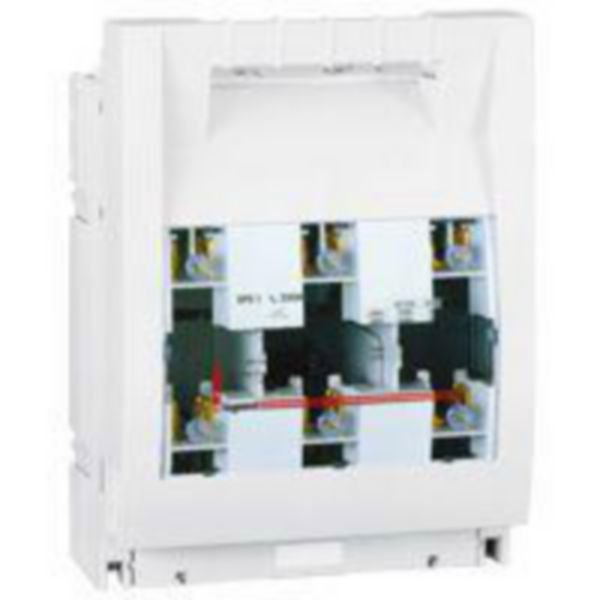

Isolating Switch 3P 250A | Main & Safety Switch | 800V AC | IP40 Rated | @Each of 1 | by Legrand
The Isolating Switch 3P 250A is designed for reliable electrical isolation in industrial and commercial applications. With a maximum rated operation voltage of 800V AC and a rated permanent current of 250A, this switch ensures safety and compliance in electrical distribution systems. Ideal for switchboards and control panels, it features front mounting and a robust IP40 rating for enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Isolating Switch 3P 250A | Main & Safety Switch | 800V AC | IP40 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 605204
Alternatively Known As: 3 Pole Isolator Switch 250A, 3P Isolating Switch Mounting Plate, Legrand 3P Isolator 250 Amp
Technical Specifications
- Version as main switch: Yes
- Version as safety switch: Yes
- Max rated operation voltage Ue AC: 800 V
- Rated permanent current Iu: 250 A
- Rated operation power at AC-23, 400 V: 173 kW
- Conditioned rated short-circuit current Iq: 50 kA
- Suitable for fuses: NH1
- Number of poles: 3
- With error protection: No
- Type of electrical connection of main circuit: Frame clamp
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for busbar mounting: No
- Type of control element: Cover grip
- Position control element: Front side
- Motor drive optional: No
- Motor drive integrated: No
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP40
- Dimensions (H x L x W): 400mm x 150mm x 300mm
- Weight: 5 kg
Key Features
- Version as main switch and safety switch
- Max rated operation voltage: 800 V AC
- Rated permanent current: 250 A
- Rated operation power at AC-23, 400 V: 173 kW
- Conditioned rated short-circuit current: 50 kA
- Suitable for NH1 fuses
- 3 poles
- Frame clamp type electrical connection
- Front mounting suitable
- Cover grip control element on front side
- Degree of protection IP40 on front side
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial electrical distribution systems
- Commercial switchboards and power cabinets
- Control and signalling panels requiring 3-pole isolating switch
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe isolation for maintenance reducing risk of electrical accidents
- Supports efficient electrical system management and safety compliance
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand Isolating Switch 3P 250A Mounting Plate is available for immediate purchase, ideal for industrial and commercial electrical isolation applications.
