Trade Discount 25%

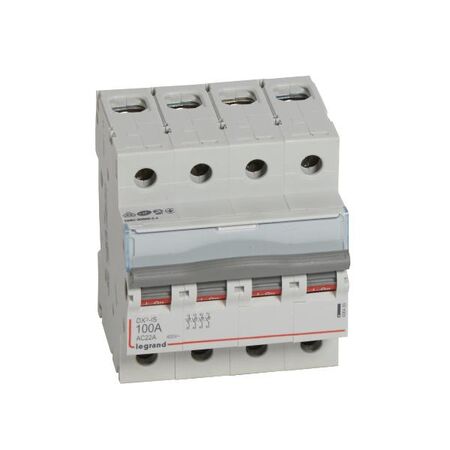

Isolating Switch 4P 400V 100A | IP65 Rated | Thermoplastic by Legrand
Isolating switch with 400V AC and 100A capacity—ideal for industrial, commercial, and residential applications. Built for maximum safety with four poles and IP65 rating, ensuring reliable circuit isolation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DX³-IS 4P 400V~ 100A Isolating Switch
Brand: Legrand
SKU: 406489
Alternatively Known As: Isolator Switch, Heavy Duty Isolating Switch
Technical Specifications
- Voltage Rating: 400V AC
- Current Rating: 100A
- Number of Poles: 4
- Material: Thermoplastic
- IP Rating: IP65
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 200mm x 100mm x 200mm
- Weight: 4.5 kg
Key Features
- Four-pole isolating switch for maximum safety and redundancy.
- Rated for 400V AC with a 100A capacity.
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with safety regulations.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Offices and retail environments
- Residential: High power supply isolation
Standards & Compliance
- Complies with AS/NZS 60947 for electrical equipment safety.
Environmental Benefits
- Robust design minimizes environmental impact through long-lasting materials.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The DX³-IS 4P 400V~ 100A Isolating Switch by Legrand is available now for immediate purchase, perfect for various industrial and commercial applications.
