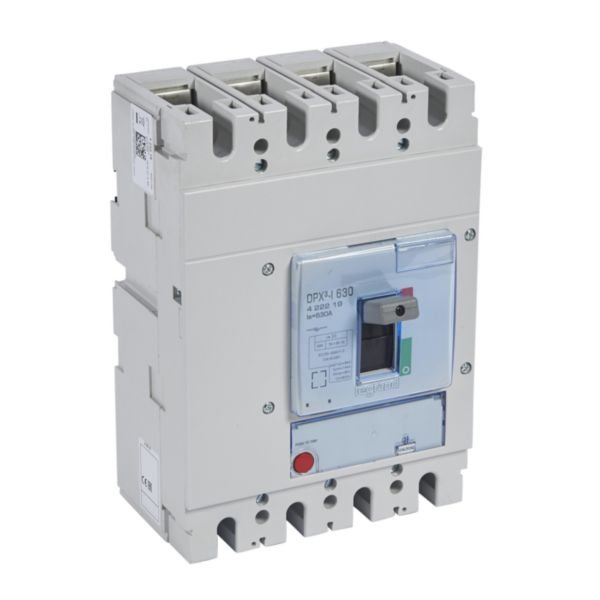

Isolating Switch for On-Load Circuit Breaking | 800V Insulation | IP30 Protection | @EA of 1 | by Legrand
The isolating switch for on-load circuit breaking offers visible isolation and positive contact action, ensuring safety in commercial and industrial electrical installations. With a rated insulation voltage of 800V and IP30 protection, it's perfect for main switch and emergency stop applications, providing reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated insulation voltage: 800 V
- Rated impulse withstand voltage: 8 kV
- Rated operating voltage: 220-690 V AC
- Rated permanent current: 630 A
- Rated short-time withstand current (lcw): 8 kA
- Rated operation power at AC-23, 400 V: 252 kW
- Conditioned rated short-circuit current (Iq): 7.6 kA
- Number of poles: 4
- Number of auxiliary contacts as change-over contact: 2
- Motor drive optional: Yes
- Voltage release optional: Yes
- Device construction: Built-in fixed built-in technique
- Suitable for floor mounting and distribution board installation
- Type of electrical connection: Screw connection
- Degree of protection (IP), front side: IP30
- Dimensions (H x L x W): 250mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- On-load circuit breaking by visible isolation and positive contact action without release
- Rated insulation voltage of 800V and impulse withstand voltage of 8kV
- Compliant with EN/IEC 60947-3 and NEMA AB-1 standards
- Category f use AC23 for switching motor loads
- Rotary handles and locking accessories available
- Multiple connection accessories including cage terminals, spreader, and rear terminals
- IP30 degree of protection on front side
- Interlockable wing knob control element in grey color
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration into electrical systems.
Applications
- Commercial and middle power electrical installations
- Main switch, maintenance/service switch, safety switch, emergency stop installations
- Floor mounting and distribution board installation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand DPX3-I 630 isolating switch is available for immediate purchase, ideal for commercial and industrial electrical installations requiring reliable circuit isolation.
