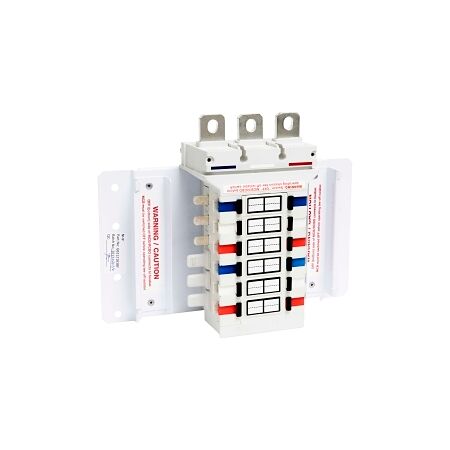

NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 12 Way 3Pole Bottom Feed

Isolation Busbar Chassis 250A | 12 Way 3-Pole | Bottom Feed | IP20 by NHP

BRAND: NHP

SKU: GB212183BF

$889.60 List price: $1,181.30

+ −

30 Days Return Delivery Options

Isolation busbar chassis with 250A rated current and 12 poles—ideal for industrial and commercial power distribution. Built for robust connectivity, with encapsulated material housing and IP20 protection.

Description
Attachments

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 12 Way 3Pole Bottom Feed

Brand: NHP

SKU: GB212183BF

Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN-T Busbar

Technical Specifications

Rated Current: 250 A
Number of Poles: 12
Nominal Voltage: 415 V
Short Time Withstand Current (0.2 sec): 25 kA
Short Time Withstand Current (0.3 sec): 20 kA
Short Time Withstand Current (1 sec): 10 kA
Assembly Arrangement: 18mm pitch
Material Housing: Encapsulated material
Tee Off Isolator: Yes
Capped Tee Offs: 0.5
Degree of Protection: IP20
Dimensions (H x L x W): 82mm x 300mm x 140mm
Weight: 5 kg

Key Features

250A rated current for high power applications.
12 poles for versatile connectivity.
3-phase input for efficient power distribution.
Encapsulated material housing for durability.
IP20 protection rating.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Suitable for any application requiring robust power distribution

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for energy efficiency in power distribution.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 12 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

GB212183BF-AU-Chassis-GB-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf (GB212183BF-AU-Chassis-GB-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf, 549 Kb) [Download]
