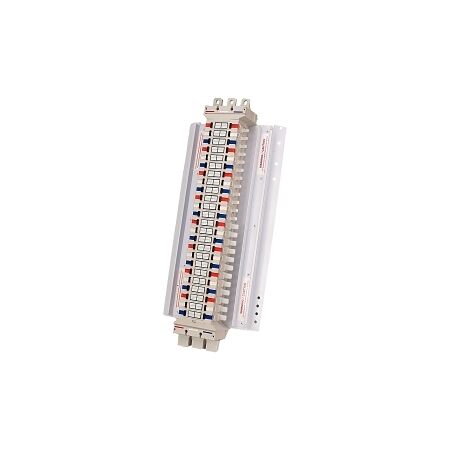

Isolation Busbar Chassis 250A | 36 Way 3-Pole | Encapsulated | IP20 by NHP
Isolation busbar chassis with 250A rated current and 36 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated housing and IP20 protection, ensuring reliable performance in indoor settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 36 Way 3Pole Universal
Brand: NHP
SKU: GB236183U
Alternatively Known As: Isolation Busbar, DIN-T Busbar, Power Distribution Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 36
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 356mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current for high power applications.
- 36 poles with 3-phase input for versatile configurations.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Any application requiring robust busbar systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency in power distribution.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 36 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
