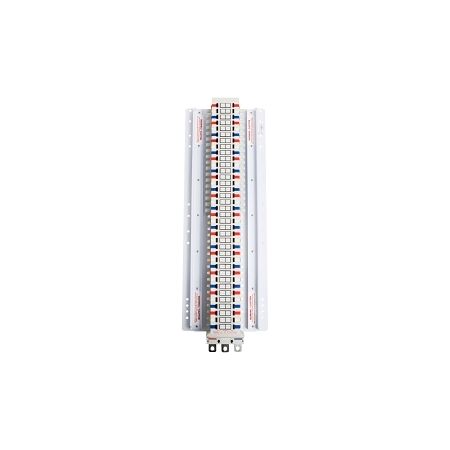

Isolation Busbar Chassis 250A 72 Way 1P Bottom Feed Red NHP

BRAND: NHP
SKU: GB272181BF
$2,795.80 List price: $3,484.00
+ −
30 Days Return Electricians Unlock Trade Access
NHP Isolation Busbar Chassis 250A 72 Way 1Pole Bottom Feed Red features rated Current: 250A, number of Poles: 72, nominal Voltage: 415V.
Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 72
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Tee Off Isolator: Yes
  • Capped Tee Offs: 0.5
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 680mm x 82mm x 100mm
  • Weight: 5 kg
Key Features
  • Rated current of 250A with 72 poles for efficient power distribution.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for energy efficiency in power distribution systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 72 Way 1Pole Bottom Feed Red is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

GB272181BF-AU-Chassis-GB-DINT-250A-1-Pole-Bottom-Feed-Datasheet.pdf (GB272181BF-AU-Chassis-GB-DINT-250A-1-Pole-Bottom-Feed-Datasheet.pdf, 488 Kb) [Download]
