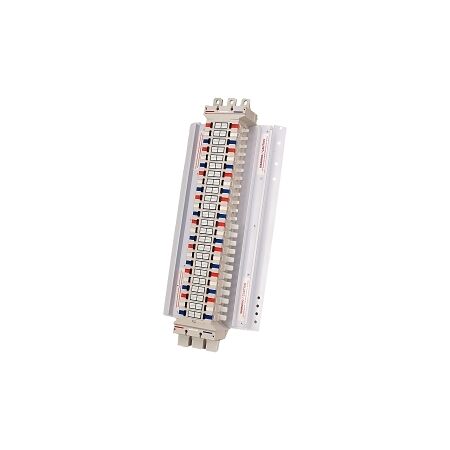

Isolation Busbar Chassis 250A | 96 Way 3-Pole | Encapsulated IP20 by NHP

BRAND: NHP
SKU: GB296183U
$3,753.80 List price: $4,984.60
+ −
30 Days Return Delivery Options
Isolation busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection.

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole Universal

Brand: NHP

SKU: GB296183U

Alternatively Known As: NHP Busbar, Isolation Busbar, Power Distribution Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 96
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Tee Off Isolator: Yes
  • Capped Tee Offs: 0.5
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 896mm x 300mm x 100mm
  • Weight: 5 kg
Key Features
  • 250A rated current with 96 poles for versatile applications.
  • 3-phase input for efficient power distribution.
  • Encapsulated material housing for enhanced durability.
  • IP20 degree of protection suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical installations in large buildings
  • General: Any application requiring robust busbar systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

GB296183U-AU-Chassis-GB-DINT-250A-3-Pole-Universal-Feed-Datasheet.pdf (GB296183U-AU-Chassis-GB-DINT-250A-3-Pole-Universal-Feed-Datasheet.pdf, 520 Kb) [Download]
