Isolation Busbar Chassis 250A | 96 Way 3-Pole | IP20 Protection by NHP
Isolation busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for efficient power management, with encapsulated housing and IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

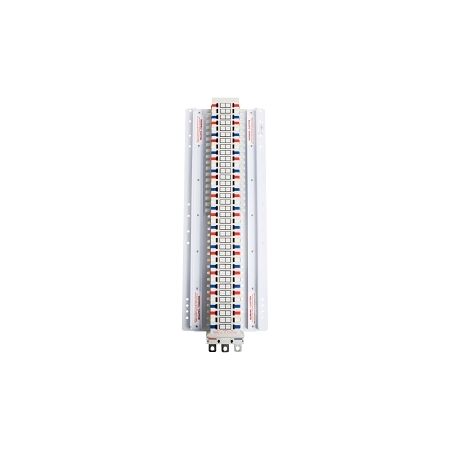

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 96 Way 3Pole Bottom Feed
Brand: NHP
SKU: GB296183BF
Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 896mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current for high power applications.
- 96 poles for extensive circuit management.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection degree for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency in power distribution.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 96 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution needs.
