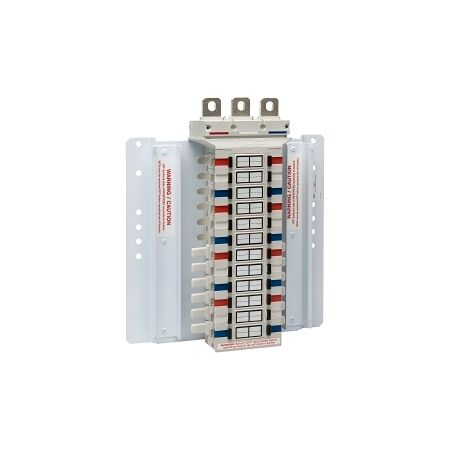

Isolation Busbar Chassis 250A | 96 Way 3-Pole | Top Feed by NHP

BRAND: NHP
SKU: GB296183TF
$3,511.50 List price: $4,662.80
+
Isolation busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for extensive circuit management, with durable encapsulated material housing and IP20 protection.

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole Top Feed

Brand: NHP

SKU: GB296183TF

Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN-T Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 96
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Tee Off Isolator: Yes
  • Capped Tee Offs: 0.5
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 896mm x 400mm x 300mm
  • Weight: 10 kg
Key Features
  • 250A rated current for high-capacity applications.
  • 96 poles for extensive circuit management.
  • 3-phase input for balanced power distribution.
  • Encapsulated material housing for durability.
  • IP20 protection degree for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power distribution reduces energy loss.
  • Durable materials contribute to longer product life and less waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.

GB296183TF-AU-Chassis-GB-DINT-250A-3-Pole-Top-Feed-Datasheet.pdf (GB296183TF-AU-Chassis-GB-DINT-250A-3-Pole-Top-Feed-Datasheet.pdf, 617 Kb) [Download]
