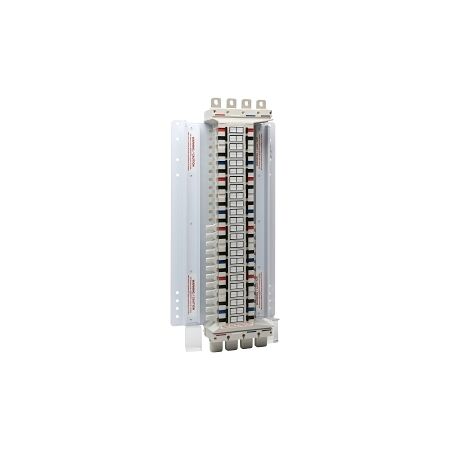

Isolation Busbar Chassis DIN-T 250A | 24 Way 4 Pole | IP20 Protection by NHP
Isolation busbar chassis with 250A rated current and 24 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection, ensuring reliable indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 4Pole Universal RNWNBN
Brand: NHP
SKU: GB224184U
Alternatively Known As: NHP Busbar, Isolation Busbar, DIN-T Busbar, Power Distribution Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 248mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current with 24 poles for versatile applications.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for various electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 4Pole Universal is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
