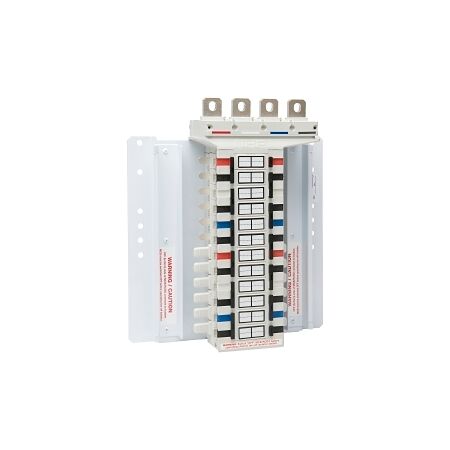

Isolation Busbar Chassis DIN-T 250A | 48 Way 4Pole | Top Feed by NHP

BRAND: NHP
SKU: GB248184TF
$2,376.70 List price: $3,155.90
+
Isolation busbar chassis with 250A rated current and 48 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, perfect for switchboards and distribution boards.

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 48 Way 4Pole Top Feed RNWNBN

Brand: NHP

SKU: GB248184TF

Alternatively Known As: Isolation Busbar, DIN-T Busbar, Power Distribution Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 48
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (0.2 sec): 25 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (1 sec): 10 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 464mm x 82mm x 200mm
  • Weight: 5 kg
Key Features
  • 250A rated current with 48 poles for versatile applications.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 48 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.

Non-Returnable & Non-Cancellable

GB248184TF-AU-Chassis-GB-DINT-250A-4-Pole-Top-Feed-Datasheet.pdf (GB248184TF-AU-Chassis-GB-DINT-250A-4-Pole-Top-Feed-Datasheet.pdf, 298 Kb) [Download]
