Trade Discount 25%

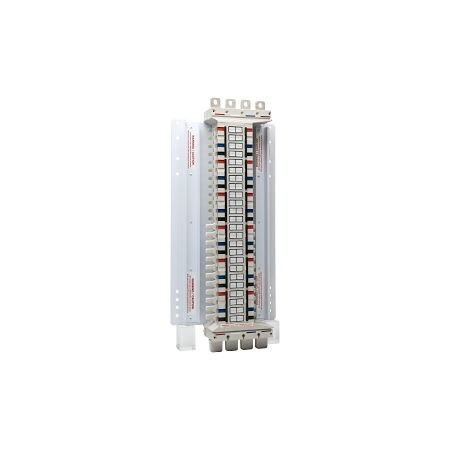

Isolation Busbar Chassis DIN-T 250A | 96 Way 3Pole | IP20 Protection by NHP
Isolation busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated housing and IP20 protection, suitable for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole N Universal RWBN
Brand: NHP
SKU: GB296183PNU
Alternatively Known As: Isolation Busbar, DIN-T Busbar, Power Distribution Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Number of Phases Input: 3P+N
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Degree of Protection: IP20
- Dimensions (H x L x W): 896mm x 300mm x 200mm
- Weight: 10 kg
Key Features
- 250A rated current with 96 poles for versatile applications.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 3Pole N Universal RWBN is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
