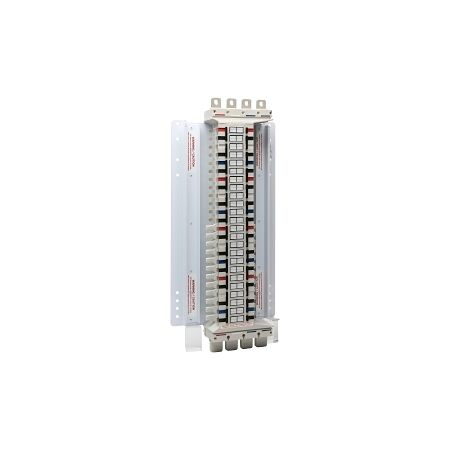

Isolation Busbar Chassis DIN-T 250A | 96 Way 4Pole | IP20 Protection by NHP
Isolation busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for extensive circuit management, with encapsulated material housing and IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 4Pole Universal RNWNBN
Brand: NHP
SKU: GB296184U
Alternatively Known As: NHP Busbar, Isolation Busbar, Power Distribution Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Number of Phases Input: 3P+N
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 896mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current for high-capacity applications.
- 96 poles for extensive circuit management.
- Encapsulated material housing for durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 4Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
