Isolator Switch 250A 3Pole | 690V Max | Interlockable Design by NHP
Isolator switch with 250A current and 690V max voltage—ideal for industrial panelboard installations. Built for safety with interlockable design, ensuring reliable circuit isolation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

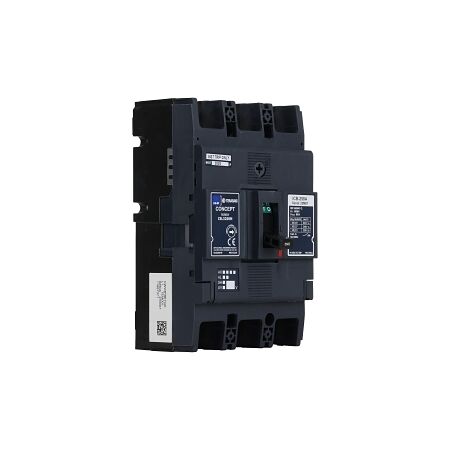

Product Name/Title: NHP Concept Panelboard Accessory Isolator Switch 250A 3Pole 25kA
Brand: NHP
SKU: CEL3250M
Alternatively Known As: Isolator Switch, Switch Disconnector, Panelboard Isolator
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 250 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 6000 cycles
- Mechanical Life Service Cycles: 18000 cycles
- Rated Surrounding Temperature Without Derating: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 95mm x 105mm
- Weight: 1.5 kg
Key Features
- Rated permanent current of 250 A and maximum rated operation voltage of 690 V.
- Toggle control element for easy operation.
- Interlockable design for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for panelboard installations in commercial and industrial settings.
- Electrical: Ideal for isolating electrical circuits safely.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Panelboard Accessory Isolator Switch 250A 3Pole 25kA is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
