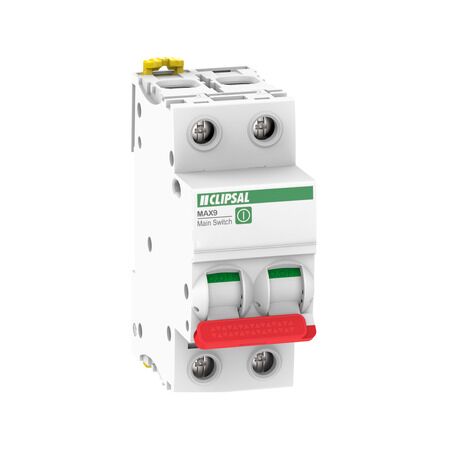

Isolator Switch 2P 100A | 415V | IP20 Rated | Toggle Control by Clipsal
Isolator switch with 100A current and 415V voltage—ideal for residential circuit protection. Built for safety, with IP20 rating and toggle control for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9, Isolator Switch, 2P, 100A, 415V
Brand: Clipsal
SKU: MX9MS2100
Alternatively Known As: MAX9 Switch, Clipsal Isolator, 2P Isolator Switch
Technical Specifications
- Rated operational voltage: 415V AC 50/60Hz
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles at 415V AC 50/60Hz
- Rated short-circuit making capacity: 5 kA at 415V AC
- Rated insulation voltage: 500V AC
- Rated impulse withstand voltage: 6 kV
- Pollution degree: 3
- Tropicalisation: severity B conforming to IEC 60068-2-30
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.161 kg
Key Features
- Switch disconnector with a rated operational current of 100A at 415V AC.
- IP20 rated for protection against solid objects.
- Toggle control type with ON/OFF indication.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments requiring reliable circuit protection.
Standards & Compliance
- Complies with IEC 60947-3 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directive, toxic heavy metal free, and mercury free.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Isolator Switch 2P, 100A, 415V is available now for immediate purchase. Ideal for residential applications requiring reliable circuit protection.
