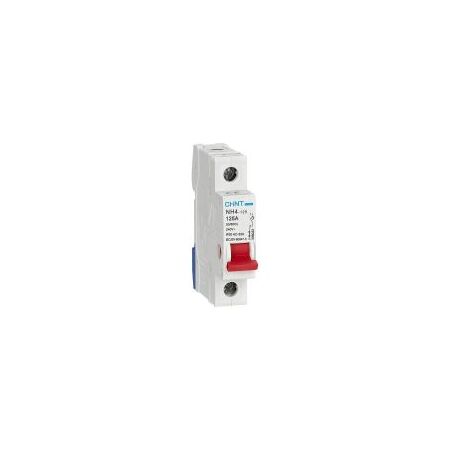

Isolator Switch Disconnector 1P 63A DIN Rail Red Toggle NH4 Chint

BRAND: CABAC
SKU: 507080
$13.20 List price: $17.70
+ −
30 Days Return Electricians Unlock Trade Access
Chint NH4-125 switch disconnector features 1P 63A isolation to IEC/EN 60947-3 with red toggle and DIN rail mount. Ideal for main switch and isolation duty.

Alternatively Known As: CHINT NH4-125 1P 63A Isolator, DIN Rail Isolator, Main Switch Disconnector

Technical Specifications
  • Product Type: Switch disconnector
  • Model: NH4-125
  • Rated Current: 63 A
  • Rated Operating Voltage: 240 V AC, 1P
  • Rated Frequency: 50/60 Hz
  • Utilisation Category: AC-22A
  • Standard: IEC/EN 60947-3
  • Insulation Voltage: 500 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Rated Short-Time Withstand Current: 12 Ie for 1 second
  • Rated Short-Circuit Making Capacity: 20 Ie for 0.1 second
  • Electrical Life: 1,500 operations
  • Mechanical Life: 8,500 operations
  • Protection Degree: IP20
  • Mounting: TH35-7.5 DIN rail
  • Connection: Top or bottom wiring
  • Terminal Tightening Torque: 2.5 N·m
  • Control: Red toggle handle
  • Dimensions (H x L x W): 86mm x 74mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Single-pole 63 A isolation switching
  • Suitable for use as a main switch or local isolator
  • DIN rail mounting for modular distribution boards
  • Provides a visible manual isolation function when switched off
  • Compatible with CHINT NB series MCBs and RCBOs
  • Top or bottom cable connection
  • Designed for residential, commercial and industrial low-voltage installations
  • Does not provide automatic overcurrent or short-circuit protection
Professional Installation Requirements
  • Installation and connection to mains electrical circuits must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Confirm RCM/EESS requirements before use in Australia.
Applications
  • Main switch isolation in residential distribution boards
  • Local isolation of lighting and power circuits
  • Commercial electrical distribution boards
  • Industrial control and power distribution panels
  • Maintenance isolation for low-voltage electrical equipment
Standards & Compliance
  • Applicable product standard: AS 60947.3:2018 for low-voltage switches, disconnectors and switch-disconnectors
  • Installation should comply with AS/NZS 3000:2018 Wiring Rules
  • Australian sale and installation require verification of applicable RCM and EESS obligations
Environmental Benefits
  • Manual switch operation requires no standby electrical power
  • Long mechanical service life can reduce replacement frequency and material waste
  • Metallic conductive components and thermoplastic housing materials may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT warranty policy states that other low-voltage apparatus are covered against defects in materials and workmanship for 27 months from the date of manufacture when sold through authorised sales channels. Contract terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
