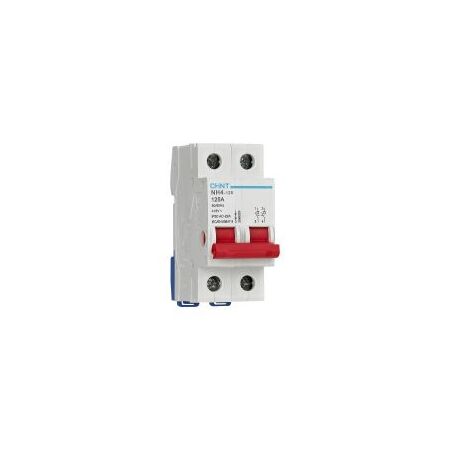

Isolator Switch Disconnector 2P 63A DIN Rail Red Toggle NH4 Chint

BRAND: CABAC
SKU: 507086
$38.30 List price: $51.00
+ −
30 Days Return Electricians Unlock Trade Access
Chint NH4-125 switch disconnector features 2P 63A isolation to IEC/EN 60947-3 with red toggle and DIN rail mount. Ideal for main switch and isolation duty.

Alternatively Known As: 2P 63A Isolator Switch, DIN Rail Switch Disconnector, Main Switch Isolator, NH4-125 2P 63A Isolator

Technical Specifications
  • Product Type: Modular switch disconnector
  • Number of Poles: 2P
  • Rated Current: 63A
  • Rated Operational Voltage: 400/415V AC
  • Rated Frequency: 50/60Hz
  • Utilisation Category: AC-22A
  • Rated Insulation Voltage: 500V
  • Rated Impulse Withstand Voltage: 4kV
  • Rated Short-Time Withstand Current: 12 x Ie for 1 second
  • Rated Short-Circuit Making Capacity: 20 x Ie for 0.1 seconds
  • Terminal Capacity: Up to 35mm² cable
  • Terminal Tightening Torque: 2.5N·m
  • Protection Rating: IP20
  • Mounting: 35mm DIN rail or panel mount
  • Electrical Life: Up to 1,500 operations
  • Mechanical Life: Up to 8,500 operations
  • Toggle Colour: Red
  • Dimensions (H x L x W): 86mm x 77mm x 36mm
  • Weight: 0.16 kg
Key Features
  • Provides manual switching and safe electrical isolation
  • Suitable for use as a main switch or isolation device
  • Two-pole switching disconnects active and neutral conductors where correctly configured
  • Compact two-module DIN rail format
  • Top or bottom cable connection
  • Compatible with modular distribution boards and final circuit equipment
  • Position indication supports visual confirmation of the switch state
  • Does not provide automatic overcurrent or short-circuit protection
Professional Installation Requirements
  • Installation and connection to mains electrical circuits must be performed by a licensed electrician in accordance with AS/NZS 3000, applicable local electrical rules and the manufacturer's instructions. Confirm that the product carries the required Australian compliance marking and is suitable for the intended installation before use.
Applications
  • Main switch duty in residential distribution boards
  • Manual isolation of electrical circuits
  • Commercial and light-industrial switchboards
  • Final power distribution panels
  • Isolation of lighting and low-power appliance circuits
  • Maintenance isolation where a visible manual disconnect is required
Standards & Compliance
  • AS/NZS IEC 60947.3:2015 for low-voltage switches, disconnectors and switch-disconnectors
  • CHINT IEC/EN 60947-3 compliant product family with an Australian SAA/Global-Mark certificate listing the NH4-125 2P 63A variant for 400/415V AC
Environmental Benefits
  • RoHS-compliant product documentation is available for the NH4 series
  • Long mechanical service life can reduce replacement frequency and electrical component waste
  • Metal electrical contacts and terminals can be recovered through appropriate electrical equipment recycling streams
  • Low internal power dissipation helps minimise energy losses during operation
Warranty Information

CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
