Isolator Switch Kit 160A | 690V Max | 3-Pole Interlockable by NHP
Isolator switch kit with 160A rating and 690V max operation—ideal for industrial and commercial panelboards. Built for safety with interlockable design and easy toggle control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

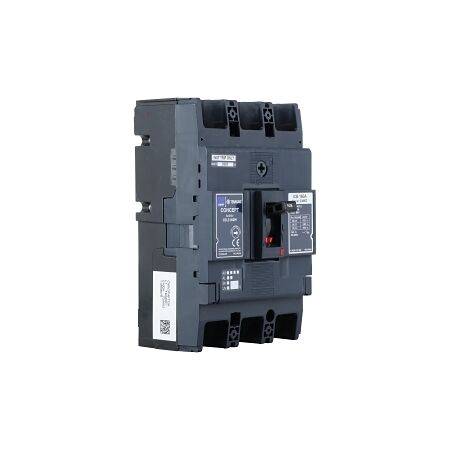

Product Name/Title: NHP Concept Panelboard Accessory Isolator Switch Kit for TemBreak Pro 160A 3Pole suits NC Chassis
Brand: NHP
SKU: CEL3160MK
Alternatively Known As: Isolator Switch Kit, Panelboard Main Switch, Switch Disconnector
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 160 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 6000 cycles
- Mechanical Life: 18000 cycles
- Rated Surrounding Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 95 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 95mm x 105mm
- Weight: 1.5 kg
Key Features
- Rated for 160A with a maximum operation voltage of 690V.
- Toggle control element for easy operation.
- Interlockable design for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in panelboards and distribution boards.
- Commercial: Ideal for commercial electrical installations.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for durability and longevity, reducing the need for frequent replacements.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The NHP Concept Panelboard Accessory Isolator Switch Kit for TemBreak Pro 160A 3Pole is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
