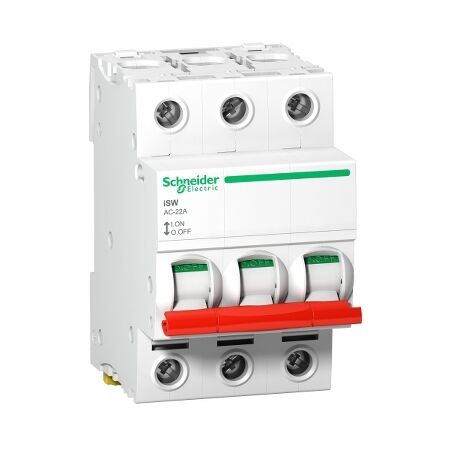

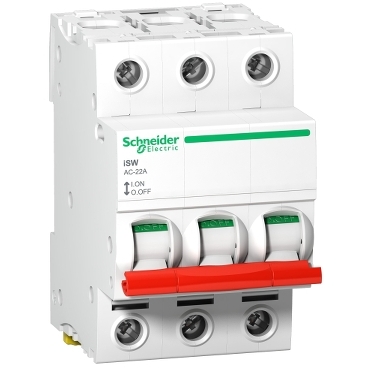

ISW Switch 3P 100A 415VAC | DIN Rail Mount | Padlockable Handle | by Clipsal
The ISW Switch 3P 100A 415VAC is a robust three-pole isolator switch designed for reliable circuit isolation in commercial and industrial applications. With a 6 module width for DIN rail mounting and a padlockable handle for added safety, it ensures compliance with IEC 60947-3 standards. Ideal for electrical distribution boards and switchboards, this switch provides clear ON/OFF indication and enhances system safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ISW Switch 3P 100A 415VAC | DIN Rail Mount | Padlockable Handle | by Clipsal
Brand: Clipsal
SKU: SCHA9S66391
Alternatively Known As: 3 Pole Isolator Switch, 100A 3P Main Switch, Clipsal 3 Phase Isolator, SCHA9S66391, DIN Rail Main Switch
Technical Specifications
- Poles: 3 (Three-phase)
- Rated Current: 100A
- Rated Voltage: 415VAC
- Frequency: 50/60Hz
- Mounting: DIN rail, 6 module width
- Utilization Category: AC-22A
- Padlockable handle
- Conforms to IEC 60947-3
- Dimensions (H x L x W): 85mm x 68mm x 108mm
- Weight: 0.45 kg
Key Features
- Three-pole (3P) isolator switch for 415VAC applications
- Rated current: 100A
- 6 module width for DIN rail mounting
- Robust design for reliable circuit isolation
- Padlockable handle for added safety
- Clear ON/OFF indication
- Complies with IEC 60947-3 standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Switchboards in factories, warehouses, and large buildings
- Main and sub-main circuit isolation
- Suitable for three-phase power control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction ensures long service life, reducing replacement frequency and waste.
- Reliable isolation helps prevent electrical faults and enhances system safety.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ISW Switch 3P 100A 415VAC 6Mod (SCHA9S66391) is available for immediate purchase. Ideal for commercial and industrial electrical distribution boards requiring reliable three-phase isolation.
