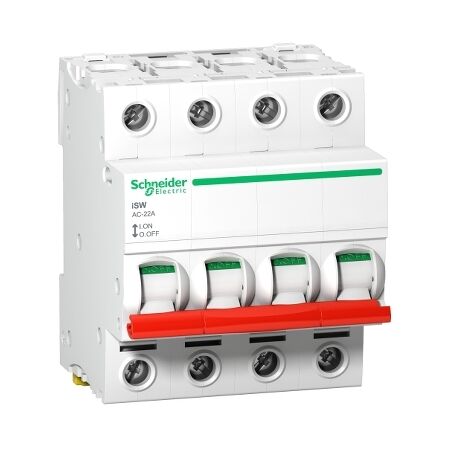

ISW Switch 4P 63A 415VAC | 8 Module Width | Padlockable Handle | Robust Design | @Pack of 1 | by Clipsal
The ISW Switch 4P 63A 415VAC is designed for reliable circuit isolation in commercial and industrial applications. With a robust 4-pole design and padlockable handle, it ensures safety and compliance with IEC standards. Ideal for main and sub-main circuit isolation, this switch is perfect for residential, commercial, and light industrial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ISW Switch 4P 63A 415VAC | 8 Module Width | Padlockable Handle | Robust Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9S66463
Alternatively Known As: 4 Pole Isolator Switch, 63A Main Switch, Clipsal SCHA9S66463, 4P 63A Isolator, DIN Rail Main Switch
Technical Specifications
- Number of Poles: 4
- Rated Current: 63A
- Rated Voltage: 415VAC
- Frequency: 50/60Hz
- Mounting: DIN rail (8 module width)
- Utilization Category: AC-22A
- Padlockable handle
- Conforms to IEC 60947-3
- Dimensions (H x L x W): 83mm x 70mm x 144mm
- Weight: 0.45 kg
Key Features
- 4 pole isolator switch for three-phase applications
- Rated current: 63A
- Rated voltage: 415VAC
- 8 module width for DIN rail mounting
- Robust design for reliable circuit isolation
- Padlockable handle for enhanced safety
- Clear ON/OFF indication
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Switchboards for machinery and equipment isolation
- Main and sub-main circuit isolation in buildings
- Suitable for residential, commercial, and light industrial installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60947.3 – Low-voltage switchgear and controlgear (Switches, disconnectors, switch-disconnectors and fuse-combination units)
Environmental Benefits
- Enables safe isolation of electrical circuits, supporting maintenance and upgrades without energy waste.
- Durable construction reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ISW Switch 4P 63A 415VAC 8Mod (SCHA9S66463) is available for immediate purchase. Ideal for main and sub-main circuit isolation in commercial, industrial, and residential switchboards.
