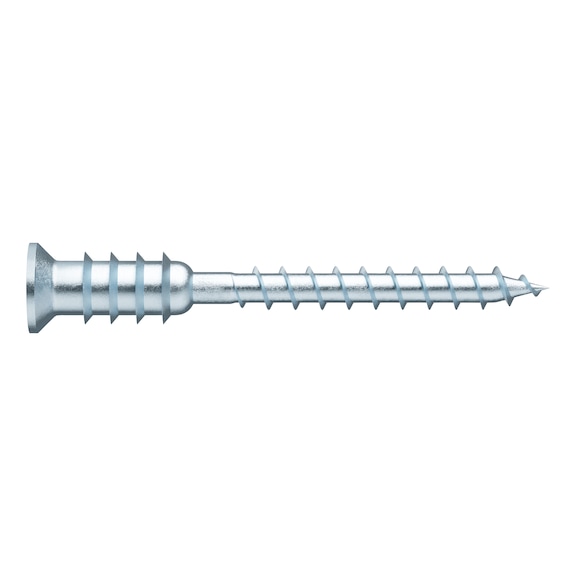

Jamo 4 CS Adjustable Distance Mounting Screw | Zinc-Plated Steel | Countersunk Head | 100 PCS | by Wurth
The Jamo 4 CS Adjustable Distance Mounting Screw is designed for precise adjustments in mounting wooden substructures on various surfaces. Made from durable zinc-plated steel, it features a countersunk head and a unique partial thread design for enhanced stability and power transmission. Ideal for construction and substructure applications, this screw ensures reliable performance and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo 4 CS Adjustable Distance Mounting Screw | Zinc-Plated Steel | Countersunk Head | 100 PCS | by Wurth
Brand: Wurth
SKU: 23456470
Alternatively Known As: Adjustable mounting screw, Jamo 4 CS screw, Countersunk head wood screw, Zinc-plated adjustment screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 70 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 43 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 70mm x 12mm
- Weight: 0.05 kg
Key Features
- Screw for making adjustments to the mounting distance of wooden substructures on various surfaces
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning due to tight-fit recess
- Permanent attachment of components with ring-shaped fixing grooves
- Clearance adjustment between components by turning the screw back
- Maximum reliability due to asymmetrical single thread
- Excellent anchoring in wood with asymmetrical thread flanks
- Friction-free screw fitting in plastic anchors and compressed wooden materials
- Rapid bite through continuous thread design to the tip
- Non-spreading screwing due to tip geometry
- High strength and ductility from adjusted heat treatment
Professional Installation Requirements
- Professional installation recommended to ensure correct adjustment and secure mounting on various surfaces.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Substructure mounting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable construction reduces need for frequent replacements
Warranty Information
Wurth provides standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Wurth Jamo 4 CS Adjustable Distance Mounting Screw is available for immediate purchase, ideal for construction and substructure adjustment applications.
