Jamo 4 CS Adjustable Distance Mounting Screws | Zinc-Plated Steel | Countersunk Head | @Pack of 100 | by Wurth

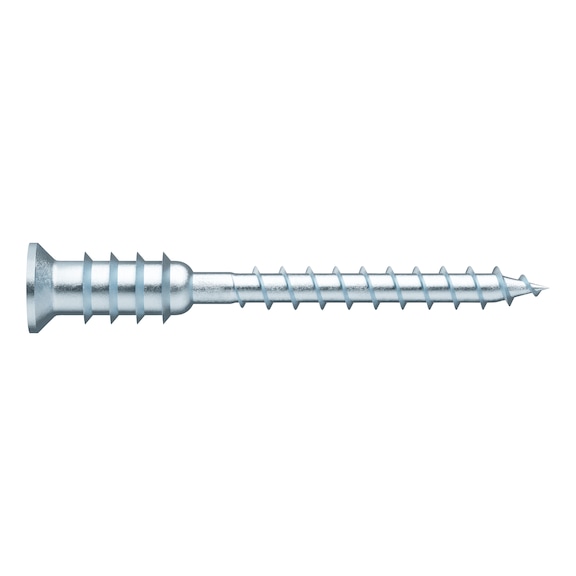

Jamo 4 CS adjustable distance mounting screws are designed for precise adjustments in wooden substructures, featuring a durable zinc-plated steel construction and a countersunk head for seamless integration. Ideal for construction and woodworking applications, these screws ensure optimal power transmission with their RW drive and provide a secure, permanent attachment of components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo 4 CS Adjustable Distance Mounting Screws | Zinc-Plated Steel | Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 234564160
Alternatively Known As: Adjustable mounting screw, Jamo 4 CS screw, Zinc plated wood screw, Countersunk head screw, RW drive screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 160 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 83 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 160mm x 160mm x 12mm
- Weight: 0.15 kg
Key Features
- Screw for making adjustments to the mounting distance of wooden substructures on various surfaces
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- One-handed working with precise positioning due to tight-fit recess
- Permanent attachment of components with fixed connection of wooden parts
- Ring-shaped fixing grooves for secure anchoring
- Clearance adjustment by turning the screw back
- Asymmetrical single thread for maximum reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Friction-free screw fitting in plastic anchors and compressed wood materials
- Rapid bite through continuous thread design to the tip
- Non-spreading screwing to reduce splitting
- High strength and ductility due to adjusted heat treatment
- Zinc plated hardened steel for durability
- RoHS-compliant
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper adjustment and secure mounting.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Substructure mounting and adjustment
Standards & Compliance
- Complies with AS/NZS 4785 – Timber fasteners (relevant for wood screw applications)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
