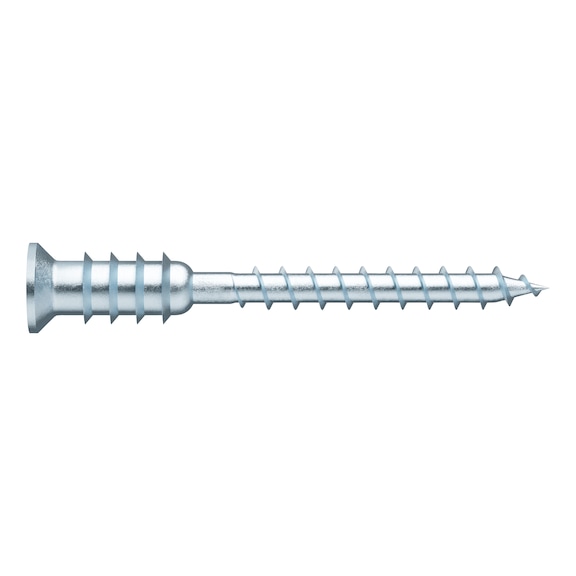

Jamo 4 CS Adjustable Mounting Screw | Zinc-Plated Steel | Countersunk Head | @Pack of 100 | by Wurth
Jamo 4 CS adjustable mounting screw is designed for precise adjustments in wooden substructures, featuring a durable zinc-plated steel construction and a countersunk head for seamless integration. Ideal for construction and woodworking applications, this screw ensures reliable anchoring and easy installation, making it perfect for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo 4 CS Adjustable Mounting Screw | Zinc-Plated Steel | Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 23456450
Alternatively Known As: Adjustable mounting screw, countersunk head screw, wood substructure screw, zinc-plated adjustment screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 50 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 23 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 50mm x 12mm
- Weight: 0.05 kg
Key Features
- Screw for making adjustments to mounting distance of wooden substructures on various surfaces
- RW drive for ideal power transmission and more power due to larger contact area
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- Permanent attachment of components with ring-shaped fixing grooves larger than screw diameter
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Partial thread with underhead thread for adjusting the countersunk head
- Non-spreading screwing thanks to tip geometry without component to reduce splitting
- High strength and ductility guaranteed by adjusted heat treatment
- Suitable for friction-free fitting in plastic anchors and compressed wooden materials
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct adjustment and secure mounting.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Suitable for dowel use and substructure adjustments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for construction and woodworking applications requiring adjustable mounting solutions.
