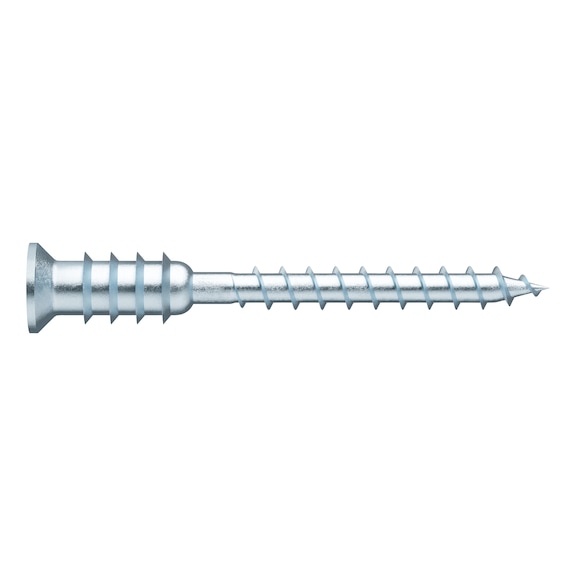

Jamo 4 CS Screw | Adjustable Distance Mounting | Zinc-Plated Steel | 100 PCS | by Wurth
The Jamo 4 CS screw is designed for adjustable distance mounting, featuring a durable zinc-plated steel construction. Ideal for fixing wooden parts on various surfaces, this screw ensures optimal power transmission with its RW drive and asymmetrical thread for maximum reliability. Perfect for construction and substructure applications, it offers a secure and permanent attachment for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo 4 CS Screw | Adjustable Distance Mounting | Zinc-Plated Steel | 100 PCS | by Wurth
Brand: Wurth
SKU: 23456490
Alternatively Known As: Adjustable mounting screw, Jamo 4 CS screw, Countersunk head wood screw, Zinc plated adjustment screw

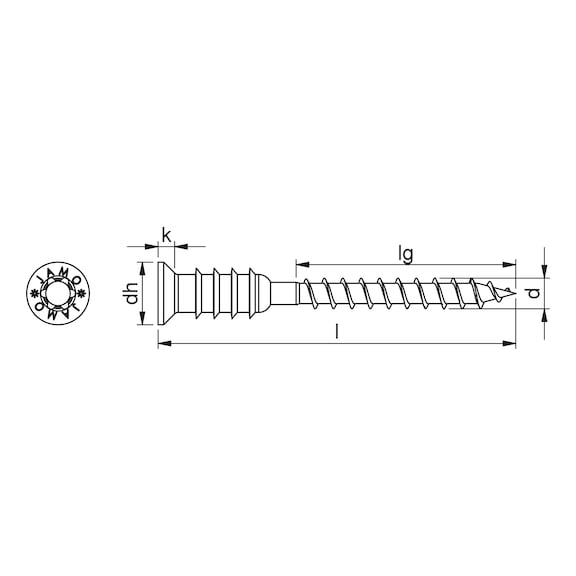

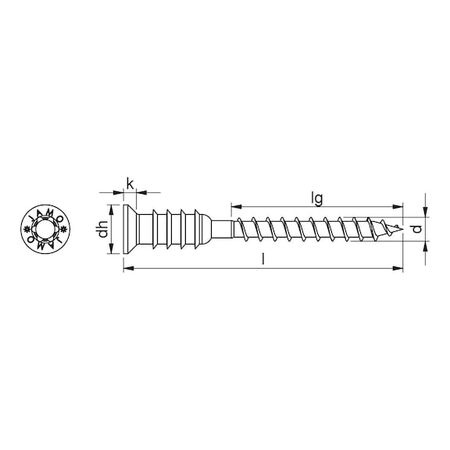

Technical Specifications
- Nominal diameter: 6 mm
- Length: 90 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 63 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 90mm x 12mm
- Weight: 0.05 kg
Key Features
- Screw for making adjustments to mounting distance of wooden substructures
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- One-handed working with precise positioning due to tight-fit recess
- Permanent attachment of components with fixed connection of wooden parts
- Ring-shaped fixing grooves for secure anchoring
- Clearance adjustment by turning the screw back
- Asymmetrical single thread for maximum reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Friction-free fitting in plastic anchors and compressed wood materials
- Rapid bite through continuous thread design to tip
- Non-spreading screwing to reduce splitting
- High strength and ductility from adjusted heat treatment
- Zinc plated hardened steel for durability
- RoHS-compliant
Professional Installation Requirements
- Professional installation recommended to ensure correct adjustment and secure fixing, especially on masonry or concrete surfaces.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Substructure mounting
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for construction and substructure mounting applications.
