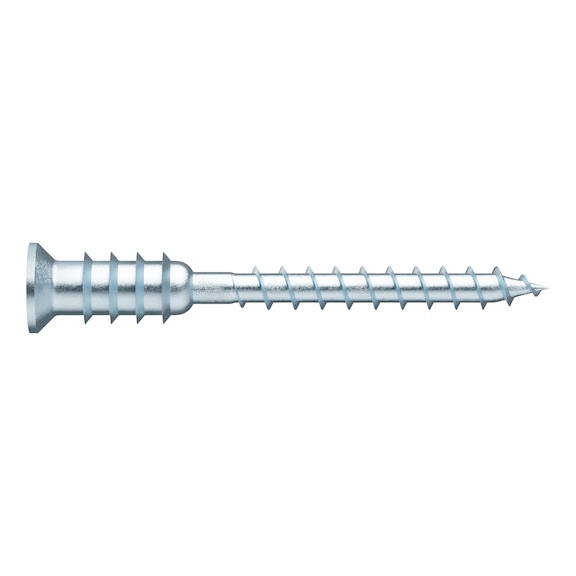

Jamo 4 CS Screw for Adjustable Mounting | Zinc-Plated Steel | Countersunk Head | @Pack of 100 | by Wurth
Jamo 4 CS screws are designed for adjustable distance mounting, featuring a durable zinc-plated steel construction and a countersunk head for a flush finish. Ideal for woodworking and construction applications, these screws ensure maximum reliability and stability with their asymmetrical thread design, making them perfect for securing wooden parts to various surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo 4 CS Screw for Adjustable Mounting | Zinc-Plated Steel | Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 234564100
Alternatively Known As: Adjustable mounting screw, Countersunk head screw, Wood substructure screw, Zinc plated adjustment screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 100 mm
- Head type: Countersunk head
- Head diameter: 12.3 mm
- Head height: 3.5 mm
- Internal drive: RW40
- Nominal diameter 2: 9.9 mm
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Coarse thread
- Thread length: 73 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 7.4 mm
- Shape of tip: Tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Dowel
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 100mm x 12mm
- Weight: 0.05 kg
Key Features
- Screw for making adjustments to mounting distance of wooden substructures
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning due to tight-fit recess
- Permanent attachment of components with ring-shaped fixing grooves
- Clearance adjustment between components by turning the screw back
- Maximum reliability due to asymmetrical single thread
- Excellent anchoring in wood with asymmetrical thread flanks
- Ideal for friction-free fitting in plastic anchors and compressed wood
- Non-spreading screwing due to tip geometry
- High strength and ductility from adjusted heat treatment
- Zinc plated hardened steel for durability
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct adjustment and secure fixing.
Applications
- Spacing assembly
- Adjusting mounting distance of wooden substructures
- Fixing wooden parts on wooden, stone, or concrete surfaces
- Suitable for dowel use
Standards & Compliance
- AS/NZS 4785 – Timber fasteners and fixings
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Jamo 4 CS screws are available for immediate purchase, ideal for construction and woodworking applications requiring adjustable mounting solutions.
