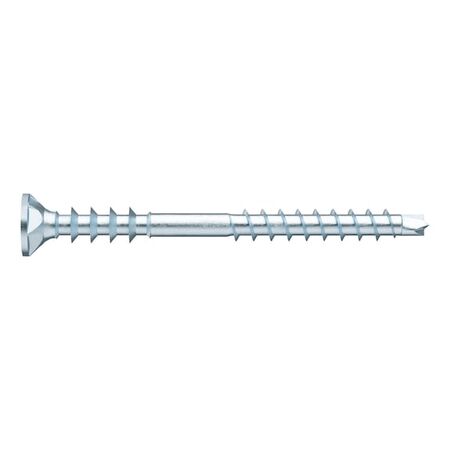

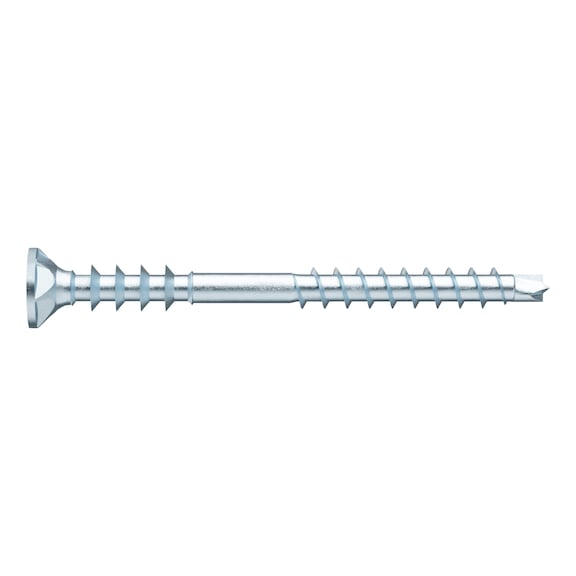

Jamo Plus 4 CSMP Screw | Adjustable Distance Mounting | Zinc-Plated Steel | 100 PCS | by Wurth
Jamo Plus 4 CSMP screws are designed for adjustable distance mounting, featuring a zinc-plated steel construction and a unique underhead thread for precise countersunk head adjustment. Ideal for professional tradespeople, these screws ensure optimal power transmission and stability, making them perfect for substructure mounting on wood and other timber products.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo Plus 4 CSMP Screw | Adjustable Distance Mounting | Zinc-Plated Steel | 100 PCS | by Wurth
Brand: Wurth
SKU: 234466110
Alternatively Known As: Adjustable wood mounting screw, Countersunk wood screw, Zinc plated wood screw, RW drive screw, Jamo CSMP screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 110 mm
- Head type: Countersunk milling pocket head
- Head diameter: 12 mm
- Head height: 4.4 mm
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Single start thread
- Thread length: 65 mm
- Screw-thread length with drill tip: 70 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 4 mm
- Tip shape: Centring drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Board plywood (BSP), Softwood, OSB, Chipboard
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 110mm x 12mm
- Weight: 0.15 kg
Key Features
- Approved screw for adjustable distance mounting of wooden substructures on wood
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Permanent attachment of components with ring-shaped fixing grooves larger than screw diameter
- Clearance adjustment between components by turning the screw back
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Precise positioning and clean drilling due to advanced centring drill tip
- Positioning and drilling without chipping
- Maximum drilling performance through cutting edges similar to Forstner bits
- Precise positioning on hard surfaces without slipping thanks to centring pin
- Quick screwing due to gentle start of thread
- High strength and ductility due to adjusted heat treatment
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct adjustable mounting and secure fastening.
Applications
- Spacing assembly
- Adjusting
- Substructure mounting of wooden substructures on wood
Standards & Compliance
- AS/NZS 4785 – Timber fasteners and connectors
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Jamo Plus 4 CSMP screws are available for immediate purchase, ideal for wood substructure mounting and adjustable distance applications.
