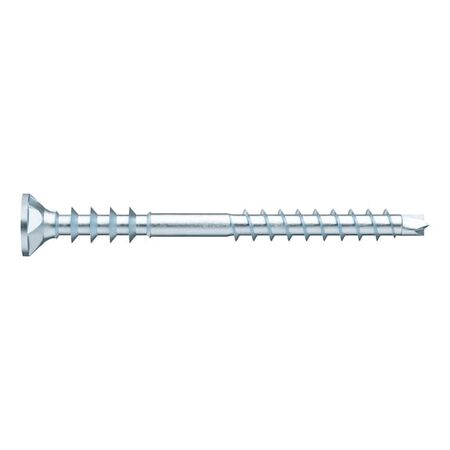

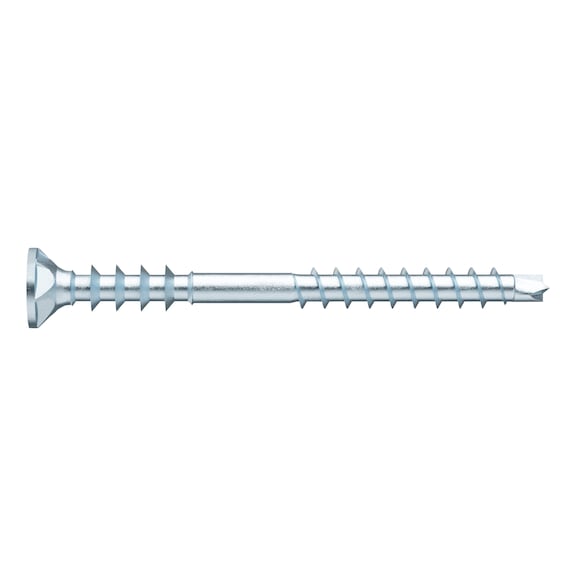

Jamo Plus 4 CSMP Screw | Adjustable Distance Mounting | Zinc-Plated Steel | 100 PCS | by Wurth
Jamo Plus 4 CSMP screws are designed for adjustable distance mounting, featuring a zinc-plated steel construction and a unique partial thread design. Ideal for securing wooden substructures, these screws ensure maximum reliability and precise positioning, making them perfect for professional installations in various wood applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo Plus 4 CSMP Screw | Adjustable Distance Mounting | Zinc-Plated Steel | 100 PCS | by Wurth
Brand: Wurth
SKU: 234466120
Alternatively Known As: Adjustable wood mounting screw, Countersunk wood screw, Zinc plated wood screw, RW drive screw, Jamo Plus mounting screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 120 mm
- Head type: Countersunk milling pocket head
- Head diameter: 12 mm
- Head height: 4.4 mm
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Single start thread
- Thread length: 65 mm
- Screw-thread length with drill tip: 70 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 4 mm
- Tip shape: Centring drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, Derived timber product, Board plywood (BSP), Softwood, OSB, Chipboard
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 120mm x 12mm
- Weight: 0.15 kg
Key Features
- Approved screw for adjustable distance mounting of wooden substructures on wood
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Permanent attachment of components with fixed connection of two wooden parts through ring-shaped fixing grooves
- Clearance adjustment between two components by turning the screw back
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks
- Precise positioning and very clean drilling due to advanced centring drill tip
- Positioning and drilling without chipping
- Maximum drilling performance and precise drilling process through drilling cutting edges similar to Forstner bits
- Precise positioning on hard surfaces without slipping thanks to centring pin
- Quick screwing due to gentle start of thread
- High strength values and ductility due to adjusted heat treatment
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening in wood substructures.
Applications
- Spacing assembly
- Adjusting
- Substructure mounting of wooden substructures on wood
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Jamo Plus 4 CSMP Adjustable Distance Mounting Screws are available now for immediate purchase. Ideal for wood substructure mounting and spacing assembly applications.
