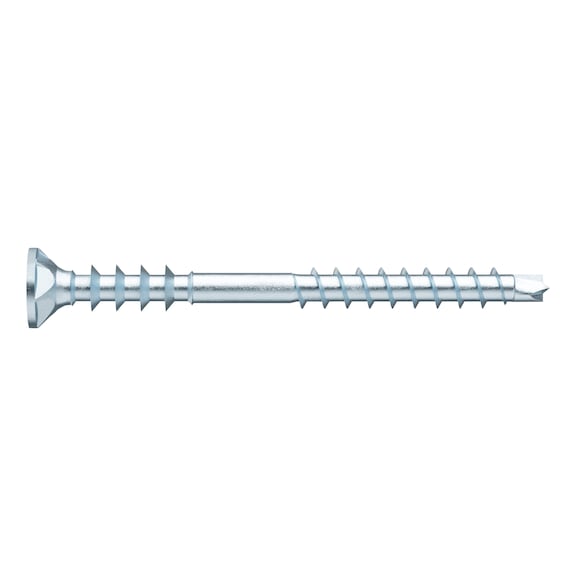

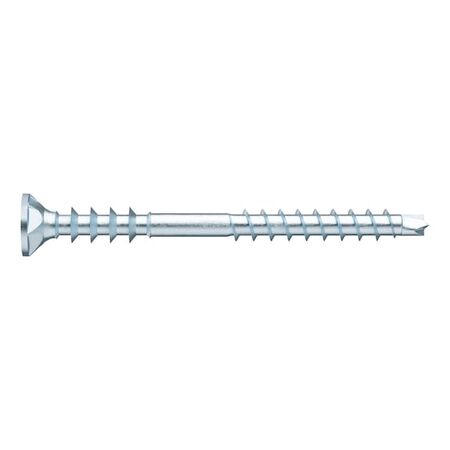

Jamo Plus 4 CSMP Screw | Zinc-Plated Steel | Countersunk Milling Pocket | 100 PCS | by Wurth
Jamo Plus 4 CSMP screws are designed for adjustable distance mounting, featuring a zinc-plated steel construction and a countersunk milling pocket head. Ideal for securing wooden substructures, these screws ensure optimal power transmission with their RW drive and advanced centring drill tip for precise positioning. Perfect for professionals and DIY enthusiasts alike, they provide reliable fastening in various wood materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Jamo Plus 4 CSMP Screw | Zinc-Plated Steel | Countersunk Milling Pocket | 100 PCS | by Wurth
Brand: Wurth
SKU: 23446690
Alternatively Known As: Adjustable wood mounting screw, Countersunk wood screw, Zinc plated wood screw, RW drive screw, Jamo CSMP screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 90 mm
- Head type: Countersunk milling pocket head
- Head diameter: 12 mm
- Head height: 4.4 mm
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread for adjusting
- Thread form: Single start thread
- Thread length: 55 mm
- Screw-thread length with drill tip: 60 mm
- Core diameter: 3.9 mm
- Core diameter of head thread: 4 mm
- Tip shape: Centring drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Suitable materials: Wood, derived timber product, plywood (BSP), softwood, OSB, chipboard
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 90mm x 12mm
- Weight: 0.15 kg
Key Features
- Approved screw for adjustable distance mounting of wooden substructures on wood
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- One-handed working with precise positioning due to tight-fit recess
- Permanent attachment of components with ring-shaped fixing grooves
- Clearance adjustment between components by turning the screw back
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Advanced centring drill tip for precise positioning and clean drilling
- Quick screwing due to gentle start of thread
- High strength and ductility from adjusted heat treatment
- Zinc plated hardened steel material for durability
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and adjustment.
Applications
- Spacing assembly
- Adjusting
- Substructure mounting of wooden parts
- Suitable for wood, derived timber products, plywood (BSP), softwood, OSB, chipboard
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Jamo Plus 4 CSMP screws are available for immediate purchase, ideal for wood substructure mounting and adjustable distance applications.
