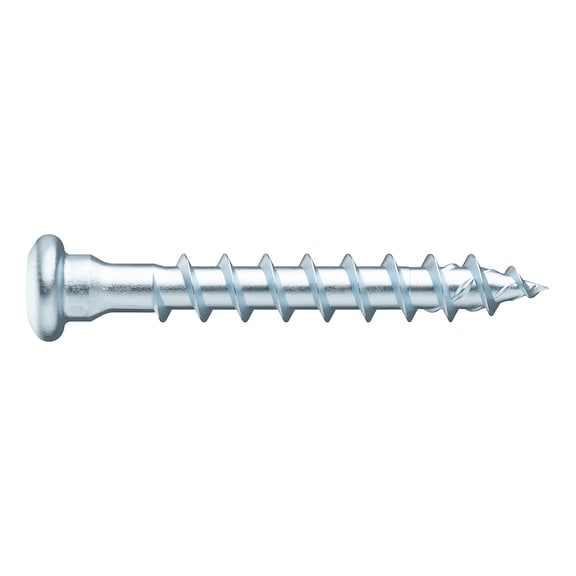

Joist Hanger Screw ASSY® 4 JH | Zinc Plated | Full Thread Pan Head | @Pack of 250 | by Wurth
The ASSY® 4 JH joist hanger screw is designed for robust fastening in construction and woodworking applications. Featuring a zinc-plated finish and full thread for optimal grip, this screw is ideal for securing sheet metal parts and wood connections. With a reinforced pan head and RW20 internal drive, it ensures reliable performance and structural integrity, making it perfect for professionals seeking durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Joist Hanger Screw ASSY® 4 JH | Zinc Plated | Full Thread Pan Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 153350035
Alternatively Known As: Joist hanger screw, zinc plated wood screw, pan head screw, full thread screw, metal to wood screw
Technical Specifications
- Nominal diameter: 5 mm
- Length: 35 mm
- Head type: Pan head with reinforced shaft neck
- Head diameter: 8 mm
- Head height: 2.6 mm
- Internal drive: RW20
- Thread type: Wood screw thread, full thread, coarse thread
- Thread length: 30 mm
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 3.396 g
- Suitable materials: Wood, derived timber product, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Metal plate, wood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.6mm x 35mm x 8mm
- Weight: 0.0034 kg
Key Features
- Full-thread wood screw with pan head and reinforced shaft neck
- RW20 internal drive for ideal power transmission and larger contact area
- Flat mounting of load-bearing sheet metal parts or steel-wood connections
- Shank reinforcement minimizes gap between sheet metal and screw
- High strength and ductility due to adjusted heat treatment
- Tip with hilltop milling cutter reduces splitting and optimizes screw-in
- Coarse thread with asymmetrical thread flank geometry for better anchoring
- Friction-reduced thread rotation lowers screw-in force
- Compatible with previous AW drive
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and structural integrity, especially in load-bearing applications.
Applications
- Fastening sheet metal parts and metal connectors in wood
- Indoor dry or sheltered areas
- Suitable for wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Metal plate and wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
Wurth ASSY® 4 JH Joist Hanger Screw Steel Zinc Plated Full Thread Pan Head 250 PCS is available for immediate purchase, ideal for construction and woodworking fastening applications.
