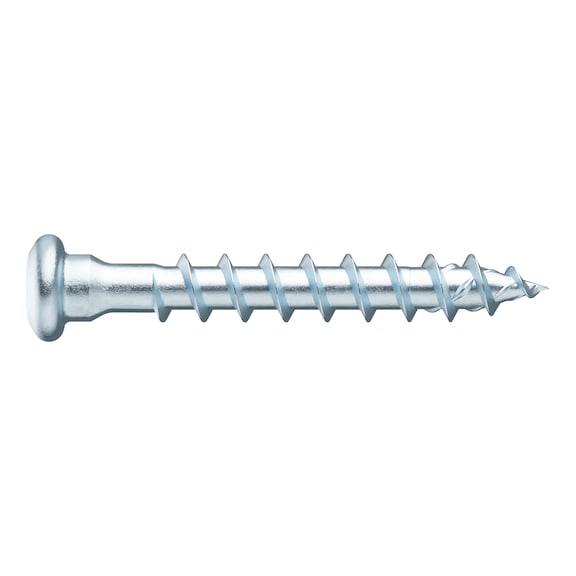

Joist Hanger Screws ASSY® 4 JH | Zinc Plated | Full Thread Pan Head | @Pack of 250 | by Wurth
Joist hanger screws ASSY® 4 JH are designed for secure metal-to-wood connections, featuring a zinc plated finish and full thread for optimal grip. Ideal for construction and woodworking applications, these screws ensure structural integrity with their reinforced pan head and RW20 internal drive, making installation efficient and reliable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Joist Hanger Screws ASSY® 4 JH | Zinc Plated | Full Thread Pan Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 153350040
Alternatively Known As: Joist hanger screws, zinc plated wood screws, pan head screws, full thread screws, metal to wood screws
Technical Specifications
- Nominal diameter: 5 mm
- Length: 40 mm
- Head type: Pan head with reinforced shaft neck
- Head diameter: 8 mm
- Head height: 2.6 mm
- Internal drive: RW20
- Thread type: Wood screw thread, full thread, coarse thread
- Thread length: 35 mm
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 3.753 g
- Suitable materials: Wood, derived timber product, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Metal plate, wood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.6mm x 40mm x 8mm
- Weight: 0.0094 kg
Key Features
- Full-thread wood screw with coarse thread design
- Visually appealing pan head with reinforced shaft neck
- RW20 internal drive for ideal power transmission and larger contact area
- Shank reinforcement minimizes gap between sheet metal and screw
- Flat mounting of load-bearing sheet metal parts or steel-wood connections
- Smooth thread start for optimized recessing and biting
- Dome-shaped milling elements in tip reduce splitting effect
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility due to adjusted heat treatment
- Compatibility with previous AW drive
- Tip with hilltop milling cutter at 34 degrees angle
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and structural integrity, especially in load-bearing applications.
Applications
- Fastening sheet metal parts and metal connectors in wood
- Indoor dry or sheltered areas
- Suitable for wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Metal plate and wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically covered against manufacturing defects.
Available Now
Wurth ASSY® 4 JH Joist Hanger Screws are available for immediate purchase, ideal for construction and woodworking applications requiring secure metal-to-wood connections.
