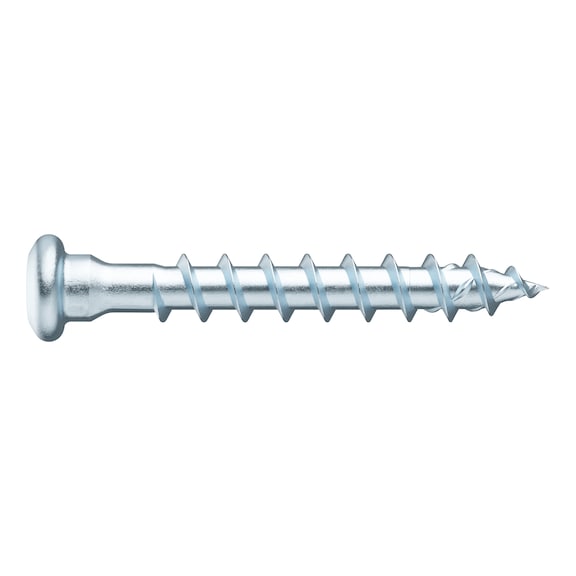

Joist Hanger Screws ASSY® 4 JH | Zinc Plated | Full Thread Pan Head | @Pack of 250 | by Wurth
Joist hanger screws ASSY® 4 JH are designed for secure metal-to-wood connections, featuring a full thread design and visually appealing pan head. Ideal for construction and woodworking applications, these screws ensure optimal power transmission with their RW20 internal drive and reinforced shaft neck, making them perfect for fastening sheet metal parts in indoor dry or sheltered areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Joist Hanger Screws ASSY® 4 JH | Zinc Plated | Full Thread Pan Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 153350025
Alternatively Known As: Joist hanger screws, zinc plated wood screws, pan head screws, full thread screws, metal to wood screws
Technical Specifications
- Nominal diameter: 5 mm
- Length: 25 mm
- Head type: Pan head
- Head diameter: 8 mm
- Head height: 2.6 mm
- Reinforced shaft neck
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 20 mm
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 2.5 g
- Suitable materials: Wood, derived timber product, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Metal plate, wood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.6mm x 25mm x 8mm
- Weight: 0.0025 kg
Key Features
- Full-thread wood screw with coarse thread design
- Visually appealing pan head with reinforced shaft neck
- RW20 internal drive for ideal power transmission and larger contact area
- Shank reinforcement minimizes gap between sheet metal and screw
- Flat mounting of load-bearing sheet metal parts or steel-wood connections
- Tip with hilltop milling cutter reduces splitting effect
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility due to adjusted heat treatment
- Compatibility with previous AW drive
- Smooth thread start for optimized recessing and biting
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and structural integrity.
Applications
- Fastening sheet metal parts and metal connectors in wood
- Indoor dry or sheltered areas
- Suitable for wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Metal plate and wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 JH Joist Hanger Screws are available for immediate purchase, ideal for construction and woodworking applications requiring secure metal-to-wood connections.
