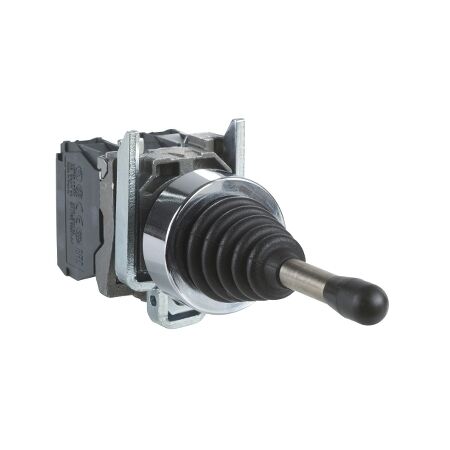

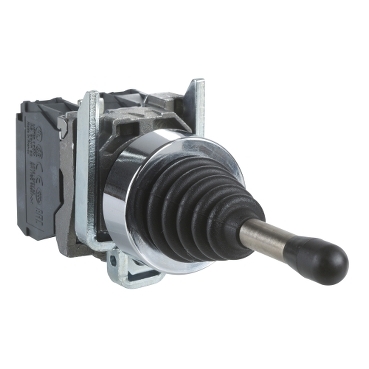

Joystick 2 DIR Spring Return | 2-Direction Control | Ø22mm Mounting | Robust Construction | @Pack of 1 | by Clipsal
The Joystick 2 DIR Spring Return is a versatile 2-direction joystick controller designed for industrial applications. With a spring return to the center position and a Ø22mm mounting diameter, it ensures precise control in machinery and automation systems. Built for durability, it features a robust construction and is ideal for use in control panels, cranes, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Joystick 2 DIR Spring Return | 2-Direction Control | Ø22mm Mounting | Robust Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXD4PA22
Alternatively Known As: 2 Direction Joystick, Spring Return Joystick, Industrial Joystick Switch, Clipsal SCHXD4PA22, 2-Way Joystick Controller
Technical Specifications
- Type: 2-direction joystick controller
- Spring return to center position
- Contact configuration: 1NO per direction
- Mounting diameter: 22mm
- Rated insulation voltage: 600V
- Thermal current: 10A
- Mechanical life: 1,000,000 operations
- Operating temperature: -25°C to +70°C
- Material: High-impact plastic and metal
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.15 kg
Key Features
- 2-direction joystick controller with spring return to center
- Ø22mm mounting diameter for standard panel cutouts
- 1 Normally Open (NO) contact per direction
- Robust construction for industrial environments
- Ergonomic handle for precise control
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure correct wiring and safe operation.
Applications
- Industrial machinery control panels
- Automation systems
- Material handling equipment
- Cranes and hoists
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Reliable operation minimizes downtime and energy waste in automated systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Joystick 2 DIR Spring Return SCHXD4PA22 is available for immediate purchase. Ideal for industrial control panels and automation systems requiring reliable two-way manual control.
