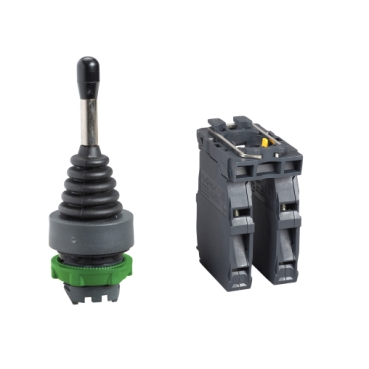

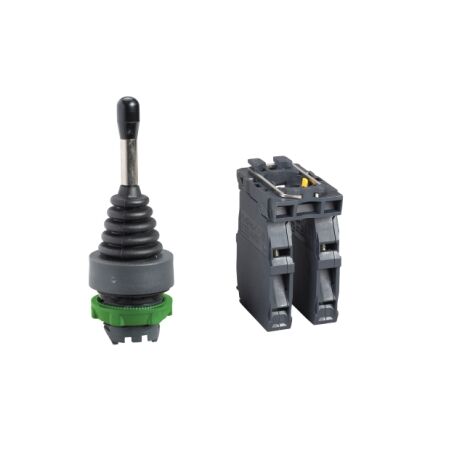

Joystick 4 Direction N/O Spring Return | Ergonomic Control | 600V Rated | Durable Construction | @Quantity of 1 | by Clipsal
The Joystick 4 Direction N/O Spring Return is designed for precise control in industrial applications. With a robust construction and ergonomic handle, it features normally open contacts and a spring return to the center position. Ideal for machinery control panels, cranes, and automation systems, this joystick ensures reliable operation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Joystick 4 Direction N/O Spring Return | Ergonomic Control | 600V Rated | Durable Construction | @Quantity of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXD5PA24
Alternatively Known As: 4-way joystick switch, industrial joystick, Clipsal joystick controller, SCHXD5PA24 joystick, spring return joystick
Technical Specifications
- Contact Type: 4 Direction, Normally Open (N/O)
- Spring Return: Yes, returns to center position
- Rated Insulation Voltage: 600V
- Thermal Current: 10A
- Mechanical Life: 1,000,000 operations
- Mounting Diameter: 22mm
- Operating Temperature: -25°C to +70°C
- Material: High-impact plastic and metal
- Dimensions (H x L x W): 90mm x 40mm x 40mm
- Weight: 0.15 kg
Key Features
- 4-directional joystick operation
- Normally open (N/O) contacts
- Spring return to center position
- Robust and durable construction
- Ergonomic handle for precise control
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and correct integration into control systems.
Applications
- Industrial machinery control panels
- Cranes and hoists
- Material handling equipment
- Automation systems
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise control, reducing energy waste in automated systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Joystick 4 Direction N/O Spring Return SCHXD5PA24 is available for immediate purchase. Ideal for industrial automation, machinery control, and material handling applications.
